SELECT A DIAGRAM
01 - Control Panel (ye20ja5c)(rev. A)

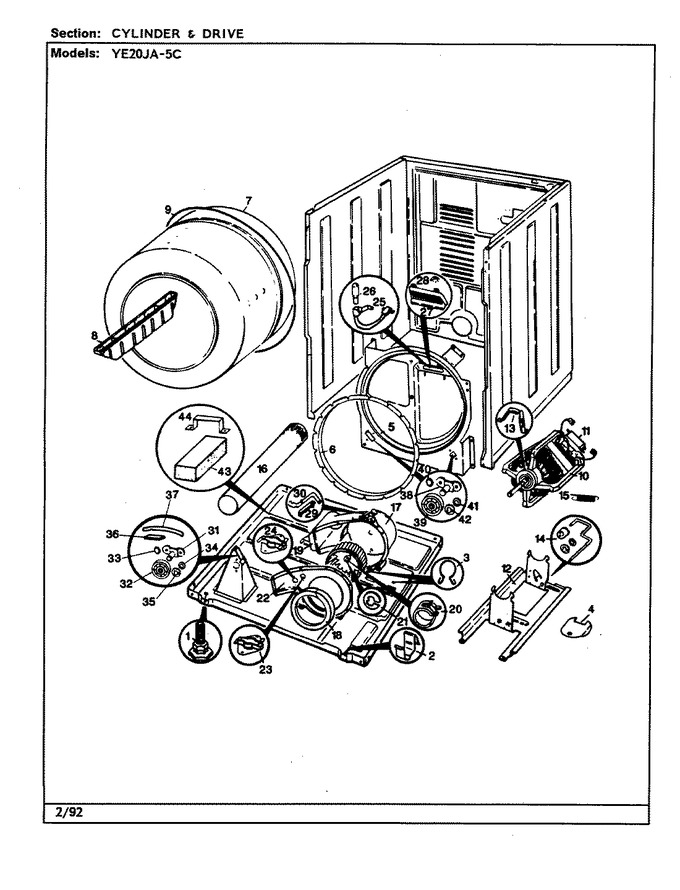

02 - Cylinder & Drive (ye20ja5c)(rev. A)
03 - Exterior (ye20ja5c)(rev. A)
04 - Heater (ye20ja5c)(rev. A)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11117769 | Leg, Leveling (Replaces: 63-5519) | - |
|
Immediately | $ 19.37 | |||
| 2 | 53-0120 | Clip, Front Panel | - |
|
$ 11.32 | ||||
| 3 | 16515 | Clip, Wiring (Replaces: 25-7027) | - |
|
$ 20.53 | ||||
| 4 | WP90767 | Screw (Replaces: 25-7741) | - |
|
Immediately | $ 8.25 | |||
| 4 | 53-0153 | Shield, Wiring | - |
|
- | ||||
| 5 | WP681414 | Screw (Replaces: 25-7733) | - |
|
Immediately | $ 8.47 | |||
| 5 | LA-1054 | Dryer Bulkhead Kit | - |
|
- | ||||
| 6 | WP31001637 | Seal Assy (gray) (Replaces: 53-0282) | - |
|
Immediately | $ 35.72 | |||
| 7 | 53-1250 | Cylinder (w/baffle) | - |
|
- | ||||
| 7 | 53-1625 | Brace, Tumbler Support | - |
|
$ 26.64 | ||||
| 8 | Y02100002 | Baffle (wht) | - |
|
- | ||||
| 8 | WP3196164 | Screw (Replaces: 25-7759) | - |
|
Immediately | $ 11.03 | |||
| 9 | 341241 | Belt, Cylinder (Replaces: 53-1589) | - |
|
Immediately | $ 18.15 | |||
| 10 | LA-1004 | Motor Mtg. Kit (dryer) | - |
|
- | ||||
| 10 | W10410996 | Motor & Pulley Assy (115v,60hz (Replaces: 53-2275) | A |
|
Immediately | $ 370.19 | |||
| 11 | 53-0693 | Switch, Motor | - |
|
- | ||||
| 12 | 53-0852 | Motor Bracket | - |
|
- | ||||
| 12 | 53-1932 | Motor Mtg. Brkt. | A |
|
- | ||||
| 12 | 25-7811 | Screw | - |
|
- | ||||
| 13 | WP660658 | Clamp, Motor (Replaces: 53-0214) | - |
|
$ 8.22 | ||||
| 13 | 25-7674 | Screw | - |
|
- | ||||
| 14 | 25-7957 | Pushnut | A |
|
$ 6.41 | ||||
| 14 | WP53-2287 | Arm, Idler (Replaces: 53-2250) | A |
|
$ 146.66 | ||||
| 14 | WP31001344 | Pulley, Idler (Replaces: 53-1628) | - |
|
Immediately | $ 50.60 | |||
| 14 | WP53-2287 | Idler Assy. (Replaces: 53-2287) | A |
|
$ 146.66 | ||||
| 14 | 25-7815 | Washer | A |
|
- | ||||
| 14 | 53-1650 | Idler Assy | - |
|
- | ||||
| 15 | 53-1648 | Idler Spring | - |
|
- | ||||
| 15 | 53-2209 | Spring, Idler | A |
|
- | ||||
| 16 | WP90767 | Screw (Replaces: 25-2134) | - |
|
Immediately | $ 8.25 | |||
| 16 | 53-0134 | Duct, Exhaust | - |
|
- | ||||
| 17 | 53-1801 | Housing, Blower | A |
|
- | ||||
| 17 | 53-1024 | Blower Cover | - |
|
- | ||||
| 18 | 12001324 | Seal, Blower Housing (Replaces: 53-0203) | - |
|
$ 218.60 | ||||
| 19 | 53-0106 | Blower Wheel | - |
|
$ 58.02 | ||||
| 20 | WP312967 | Clamp (Replaces: 25-7823) | - |
|
Immediately | $ 12.46 | |||
| 21 | 25-7855 | Ring, Retaining | - |
|
$ 8.67 | ||||
| 22 | 53-1026 | Guide, Vane Inlet | - |
|
- | ||||
| 22 | 53-1024 | Blower Cover | - |
|
- | ||||
| 22 | WP90767 | Screw (Replaces: 25-2134) | - |
|
Immediately | $ 8.25 | |||
| 22 | WP33002917 | Screw (Replaces: 25-7807) | - |
|
Immediately | $ 8.48 | |||
| 22 | 53-1933 | Cover, Blower Housing | A |
|
- | ||||
| 23 | WP53-1107 | Thermostat, Control (146/121) (Replaces: 53-1107) | - |
|
$ 94.79 | ||||
| 24 | 53-0170 | Thermostat, Lo-limit (120/110) | - |
|
- | ||||
| 24 | WP90767 | Screw (Replaces: 25-2134) | - |
|
Immediately | $ 8.25 | |||
| 25 | 53-0152 | Lamp Socket | - |
|
- | ||||
| 26 | 53-0570 | Cyl Light Bulb | - |
|
- | ||||
| 26 | WP12990527 | Screw, Sems (Replaces: 25-3457) | - |
|
Immediately | $ 8.76 | |||
| 27 | 53-0174 | Lens, Bulb | - |
|
- | ||||
| 28 | WP3195558 | Clip, Push-on (Replaces: 25-3562) | - |
|
$ 8.96 | ||||
| 28 | LA-1006 | Glide Kit, Tumbler | - |
|
Immediately | $ 29.31 | |||
| 29 | WP31001356 | Rh Gld Cushion (Replaces: 53-0182) | - |
|
$ 88.85 | ||||
| 30 | WP31001469 | Rh Cyl Glide (Replaces: 53-0183) | - |
|
$ 77.77 | ||||
| 31 | W10124350 | Not Required Part Or See Note | - |
|
- | ||||
| 32 | W10124350 | Not Required Part Or See Note | - |
|
- | ||||
| 33 | W10124350 | Not Required Part Or See Note | - |
|
- | ||||
| 34 | W10124350 | Not Required Part Or See Note | - |
|
- | ||||
| 35 | W10124350 | Not Required Part Or See Note | - |
|
- | ||||
| 36 | WP31001356 | Lh Glide Cushion (Replaces: 53-0723) | - |
|
$ 88.85 | ||||
| 37 | WP31001470 | Lh Cyl Glide (Replaces: 53-0185) | - |
|
$ 78.58 | ||||
| 37 | LA-1008 | Rr Roller Kit | - |
|
$ 66.73 | ||||
| 38 | WP53-0197 | Support Assy.-cylinder Rear (Replaces: 53-0197) | - |
|
$ 94.74 | ||||
| 38 | WP3351614 | Screw (Replaces: 25-7101) | - |
|
Immediately | $ 7.30 | |||
| 39 | 53-0642 | Cyl Roller | - |
|
- | ||||
| 40 | 25-7813 | Spacer | - |
|
- | ||||
| 41 | 25-7814 | Washer | - |
|
$ 5.33 | ||||
| 42 | WP25-7854 | Ring, Retaining (Replaces: 25-7854) | - |
|
$ 12.46 | ||||
| 43 | W10124350 | Not Required Part Or See Note | - |
|
- | ||||
| 44 | W10124350 | Not Required Part Or See Note | - |
|
- |
