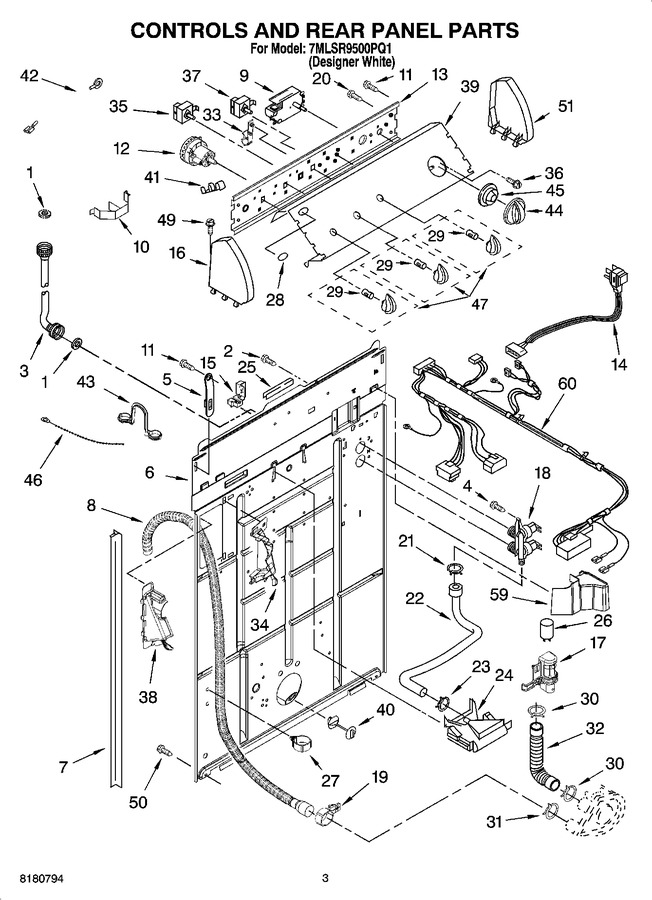

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) 1-1/16 X 5/8   (Replaces: 3976300)				$ 7.70
2	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.95
3	WP89503		Hose, Water Inlet (2) (blue Coupling)   (Replaces: 8571377)			Immediately	$ 24.09
3	WP89503		Hose, Water Inlet (2) (red Coupling)   (Replaces: 8571378)			Immediately	$ 24.09
4	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.86
5	WP8568314		Strap, Console (2)   (Replaces: 8568314)				$ 7.78
6	8318015		Panel, Rear				$ 148.59
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 26.26
8	WPW10096921		Hose, Drain (includes Illus. 19 & 27)   (Replaces: 8559373)			Immediately	$ 67.38
9	WP3949208		Timer, Control (60 Hz.) (motor Not A Service Part)   (Replaces: 3949208)				$ 375.02
10	8055003		Clip, Harness & Pressure Hose				$ 36.24
11	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
12	W10337780		Switch, Water Level   (Replaces: 3366847)			Immediately	$ 88.20
13	8544893		Bracket, Control				$ 62.87
14	WP8559419		Cord, Power (includes Item 15)   (Replaces: 8559419)				$ 124.41
15	8559337		Strain Relief, Power Cord		Appelez-nous	-
16	8271369		Cap, End (l.h.)		Appelez-nous	-
17	8318046		Clip, Capacitor				$ 79.31
18	285805		Valve, Water Mixing   (Replaces: 3952164)			Immediately	$ 55.08
19	8541668		Clamp, Hose				$ 21.26
20	3179795		Screw, Ground		Appelez-nous	-
21	WP596669		Clamp, Hose   (Replaces: 301958)			Immediately	$ 8.40
22	WP3357328		Hose, Vacuum Break   (Replaces: 8541607)			Immediately	$ 24.78
23	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 8.40
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 50.46
25	303294		Edge Protector		Appelez-nous	-
26	WP8572717		Capacitor, Motor Start   (Replaces: 8572717)			Immediately	$ 80.14
27	8541667		Clamp, Hose				$ 5.86
28	3400985		Medallion		Appelez-nous	-
29	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.81
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.81
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.39
32	285871		Hose, Pump To Tub (includes Illus. 30)   (Replaces: 3951449)			Immediately	$ 26.68
33	8317975		Retainer, Harness				$ 5.86
34	WPW10096921		Bucket, Drain Hose (left Half)   (Replaces: 8541669)			Immediately	$ 67.38
35	WPW10168256		Switch, Water Temperature   (Replaces: 661612)			Immediately	$ 128.81
36	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 7.96
37	WPW10168262		Switch, Rotary   (Replaces: 3949187)				$ 129.76
38	WPW10096921		Bucket, Drain Hose (right Half)   (Replaces: 8541658)			Immediately	$ 67.38
39	8539642		Panel, Console (includes Item 28)		Appelez-nous	-
40	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 18.90
41	W10113937		Clip, Grounding   (Replaces: 357572)				$ 10.83
42	3398893		Wire, Ground		Appelez-nous	-
43	WP8577378		U-bend Clamp, Drain Hose   (Replaces: 8541672)				$ 7.97
44	8544943		Knob, Timer				$ 38.06
45	WP8544947		Dial, Timer   (Replaces: 8544947)				$ 86.13
46	WPW10339879		Tie-beaded   (Replaces: 3347868)				$ 7.90
47	8544935		Knob, Control		Appelez-nous	-
49	WP388326		Screw, 8-18 X 1.25 (panel To Top)   (Replaces: 388326)				$ 8.11
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.82
51	8271363		Cap, End (r.h.)		Appelez-nous	-
59	8314879		Shield, Inlet Valve		Appelez-nous	-
60	3956729		Harness, Wiring (for Detail See Pages 9 & 10)		Appelez-nous	-
