SELECT A DIAGRAM

01 - Top And Console, Lit/optional

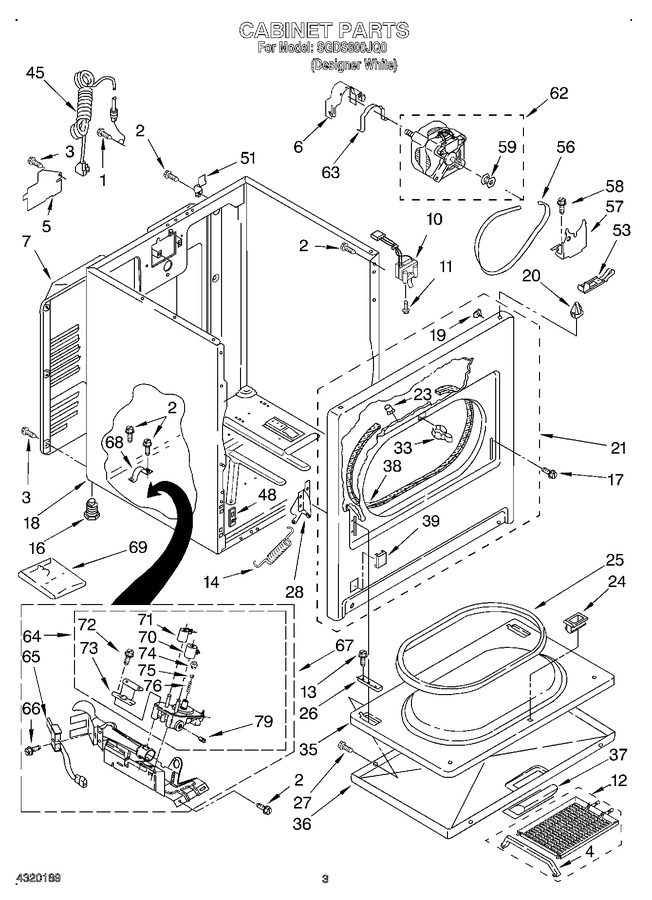

02 - Cabinet


03 - Bulkhead


04 - 3402844 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10850756		Screw, 10-32 X 5/8 (external Ground)   (Replaces: 697776)				$ 7.76
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
4	692989		Bracket, Dryer Rack				$ 12.77
5	W11539855		Cover, Block   (Replaces: 3396795)			Immediately	$ 599.76
6	WP3404162		Clamp, Motor (w/shield)   (Replaces: 3404162)			Immediately	$ 7.82
7	280043		Panel, Rear   (Replaces: 3396805)				$ 341.30
10	WP3406107		Door, Switch Assembly   (Replaces: 3406107)			Immediately	$ 31.20
11	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 7.70
12	3406839		Dry Rack			Immediately	$ 65.68
13	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
14	WPW10041960		Spring, Door (2)   (Replaces: 692495)			Immediately	$ 40.67
16	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
16	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
17	342043		Screw, 10-32 X 3/8		Appelez-nous	-
18	3399585		Cabinet (includes Illus. Nos. 5,7,16,48, & 57)		Appelez-nous	-
19	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 11.39
20	WP18776		Lock, Front Top (2)   (Replaces: 690363)			Immediately	$ 12.68
21	279740		Panel Front   (Replaces: 3395197)				$ 361.97
23	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 20.65
24	WP3389441		Catch, Door Assembly   (Replaces: 3389441)				$ 6.20
25	W10906683		Seal, Door   (Replaces: 3390731)				$ 128.53
26	W11252547		Clip, Hinge (2)   (Replaces: 337189)				$ 21.39
27	WP694091		Screw, 8-18 X 3/8   (Replaces: 694091)				$ 7.19
28	WP8066056		Hinge, R.h.   (Replaces: 8066056)			Immediately	$ 98.56
28	WP8066057		Hinge, L.h.   (Replaces: 8066057)				$ 96.14
33	279570		Strike, Panel   (Replaces: 696144)			Immediately	$ 8.89
35	WP695737		Door, Rear   (Replaces: 695737)				$ 254.56
36	WP3393549		Door, Front   (Replaces: 3393549)				$ 176.51
37	WP348721		Handle, Door   (Replaces: 690270)				$ 77.89
38	W11035878		Seal & Bearing Assembly   (Replaces: 3406129)			Immediately	$ 78.78
39	3394975		Plug, Front Panel				$ 5.70
45	W11222083		Cord, Power   (Replaces: 344020)				$ 120.59
48	W10854425		Clip, Front Panel   (Replaces: 3394083)			Immediately	$ 15.56
51	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 7.82
53	WP691366		Idler & Slide Assembly   (Replaces: 3394332)			Immediately	$ 22.47
56	341241		Belt, Drive   (Replaces: 8066065)			Immediately	$ 18.15
57	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 121.57
58	3400500		Bolt, 5/16-18 X 3/4			Immediately	$ 13.37
59	WP8066184		Pulley, 60 Hz.   (Replaces: 3394341)			Immediately	$ 51.02
62	279827		Motor Assembly 60 Hz.   (Replaces: 3976707)			Immediately	$ 191.95
63	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.83
64	279923		Valve, Gas 60 Hz. (complete)   (Replaces: 3401775)			Immediately	$ 286.03
65	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
66	WPW10366705		Lock Screw & Washer (8-32 X 5/8)   (Replaces: 3393909)				$ 7.50
67	3402844		Burner Assembly, 60 Hz.		Appelez-nous	-
68	341029		Clamp, Pipe		Appelez-nous	-
69	49572A		Kit, Conversion Type 1, 2 & 3 To Type 4 (lpg)   (Replaces: 694572)			Immediately	$ 36.19
70	279834		Coil, 60 Hz. (split) (3 Terminal) (pilot Position)   (Replaces: 694539)			Immediately	$ 32.85
71	279834		Coil, 60 Hz. (2 Terminal) (main)   (Replaces: 694540)			Immediately	$ 32.85
72	694421		Screw, Bracket Mounting (8-32 X 1/2)		Appelez-nous	-
73	694538		Bracket, Coil				$ 72.05
74	WP694424		Leak Limiter   (Replaces: 694424)				$ 34.57
75	WP694423		Screw, Regulator Adjustment   (Replaces: 694423)				$ 6.95
76	WP694422		Spring, Regulator   (Replaces: 694422)				$ 24.27
79	W10295523		Plug, Pipe   (Replaces: 239822)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
