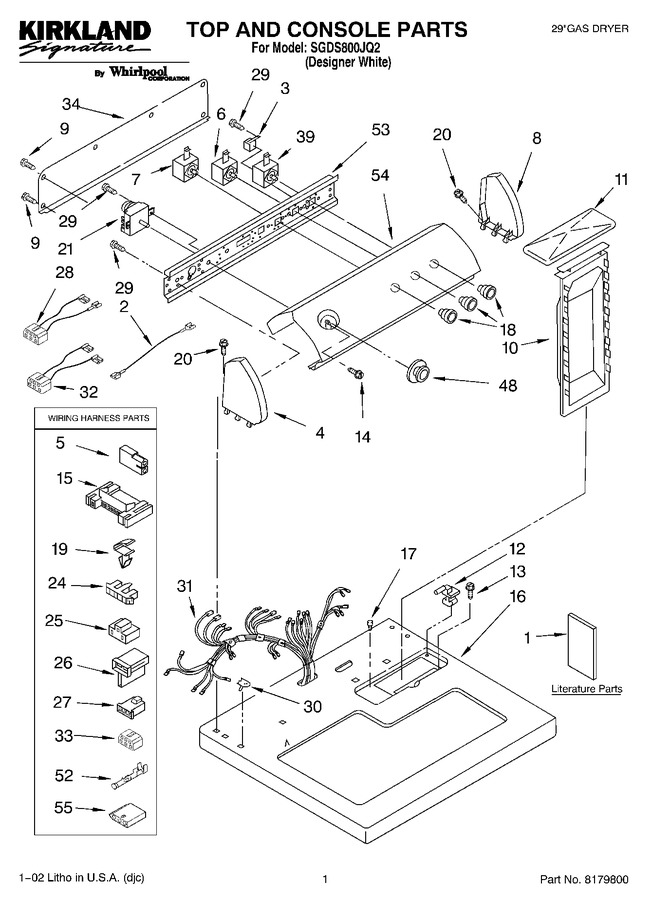

SELECT A DIAGRAM

01 - Top And Console, Literature


02 - Cabinet


03 - Bulkhead


04 - 8318272 Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT3978907		Instructions, Installation		Appelez-nous	-
1	LIT3979703		Literature Parts (label, Wiring Diagram)		Appelez-nous	-
1	LIT8318480		Literature Parts (guide, Use & Care)		Appelez-nous	-
2	3401684		Wire, Jumper (black)				$ 34.57
2	3401694		Wire, Jumper (tan)		Appelez-nous	-
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	279960		Cap, End (l.h.)   (Replaces: 8274437)				$ 87.57
5	717252		Plug, 2-way Terminal		Appelez-nous	-
6	WP3405156		Switch, Finish Guard   (Replaces: 3405156)				$ 152.79
7	WP3399640		Switch, Temperature   (Replaces: 3399640)				$ 136.25
8	279960		Cap, End (r.h.)   (Replaces: 8274434)				$ 87.57
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.55
10	WP349639		Handle & Lint Screen Assembly   (Replaces: 349639)			Immediately	$ 37.21
11	8283378		Cover, Lint Screen				$ 44.80
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 8.11
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 8.11
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3400859		Screw, Grounding				$ 13.88
15	3395683		Connector (motor)			Immediately	$ 54.45
16	8271390		Top		Appelez-nous	-
17	297535		Bumper, Lint Lid		Appelez-nous	-
18	WP3957796		Knob, Control (3)   (Replaces: 3950759)			Immediately	$ 57.57
19	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
20	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
21	WP8299766		Timer Assembly (60 Hz.)   (Replaces: 8299766)				$ 389.24
24	3397269		Connector, Timer				$ 25.55
25	3401144		Connector, (pts Relay)				$ 12.81
26	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
27	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
28	3397695		Wire, Jumper (guard On/off)				$ 90.72
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
31	8299879		Harness, Wiring		Appelez-nous	-
32	3396030		Wire, Jumper (temperature)		Appelez-nous	-
33	3347243		Connector 6-circuit		Appelez-nous	-
34	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
39	3398096		Switch, Push-to-start				$ 50.70
48	WP3957746		Timer Knob Assembly   (Replaces: 8283182)				$ 57.49
52	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
53	8271418		Bracket, Control				$ 57.15
54	3977920		Panel, Control		Appelez-nous	-
55	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
55	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
55	4392065		Kit, Dryer Repair   (Replaces: 279948)			Immediately	$ 53.85
55	346764		Kit, Hold-down (gas Dryer Mobile Home Installation)		Appelez-nous	-
55	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
55	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
55	3936144		Connector				$ 21.22
	LIT677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
