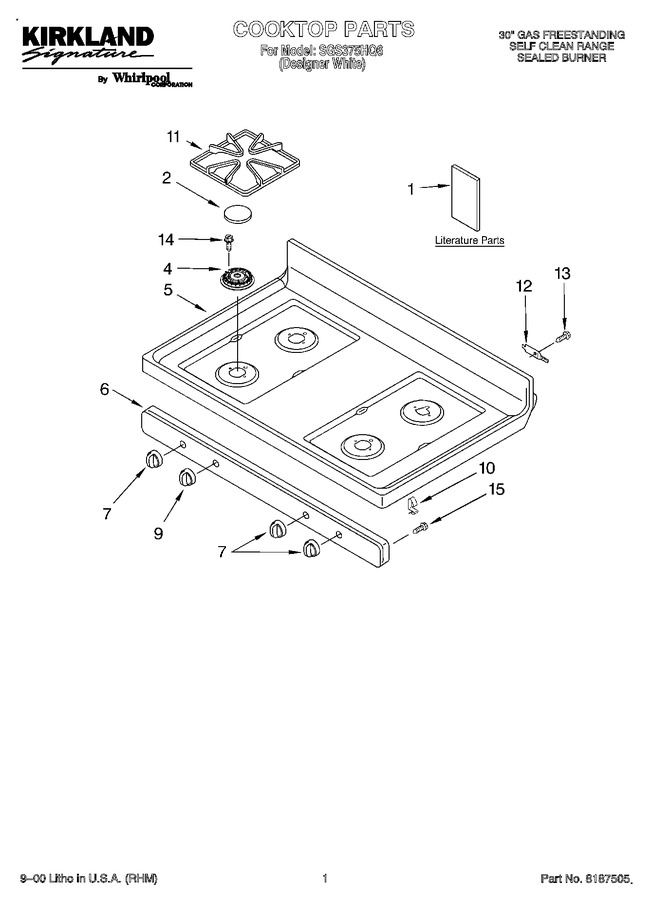

SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Manifold


04 - Chassis


05 - Drawer & Broiler


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8273160		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT8273173		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT8274006		Literature Parts (tech Sheet (supplemental))		Appelez-nous	-
1	LIT8273170		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT3195945		Literature Parts (instruct, Install (template))		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	3191899		Cap, Burner (rr)				$ 31.21
2	WP3191905		Cap, Burner (lf)   (Replaces: 3191905)				$ 90.98
2	WP3191903		Cap, Burner (lr - Rf)   (Replaces: 3191903)				$ 191.50
4	WP4455980		Burner (lr, Rf)   (Replaces: 8273215)				$ 65.21
4	8273216		Burner (rr)		Appelez-nous	-
4	WP4455981		Burner (lf)   (Replaces: 8273214)			Immediately	$ 91.90
5	8272251		Cooktop		Appelez-nous	-
6	WP8523854		Panel, Manifold   (Replaces: 8273025)				$ 290.58
7	WP8273104		Knob, Control (3)   (Replaces: 8273104)			Immediately	$ 17.99
9	WP8273104		Knob, Powerburner   (Replaces: 8273284)			Immediately	$ 17.99
10	3195813		Clip, Cooktop (2)		Appelez-nous	-
11	WPW10447925		Grate, Burner (4)   (Replaces: 8053455)			Immediately	$ 299.55
12	WP3195060		Hinge, Cooktop (2)   (Replaces: 3195060)			Immediately	$ 13.18
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 8.56
15	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95

    View Diagram in Separate Window       Print Part List
