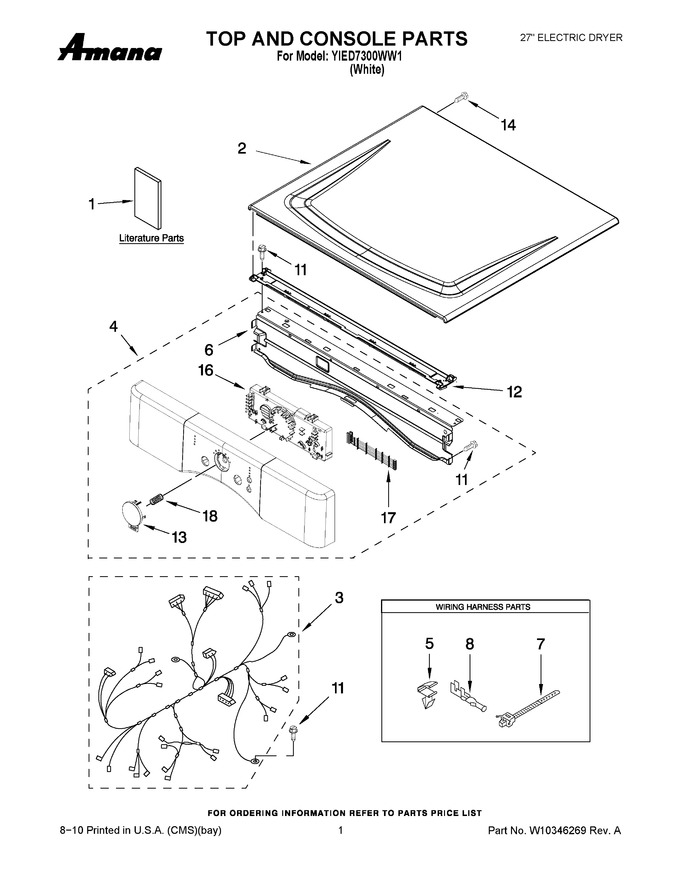

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10238796 | Tech Sheet |
|
- | |||||
| 1 | W10240584 | Installation, Instruction |
|
- | |||||
| 1 | W10253344 | Use & Care Guide |
|
- | |||||
| 2 | WPW10336080 | Top (Replaces: 8563730) |
|
$ 331.99 | |||||
| 3 | W10251444 | Harness, Main |
|
$ 76.79 | |||||
| 4 | W10252321 | Panel, Console |
|
$ 169.01 | |||||
| 5 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 6 | WP8565237 | Bracket, Console (Replaces: 8565237) |
|
$ 189.77 | |||||
| 7 | WP3391018 | Cable Tie (Replaces: 3391018) |
|
$ 33.43 | |||||
| 8 | WP94614 | Terminal (Replaces: 94614) |
|
$ 8.05 | |||||
| 11 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 12 | WPW10266747 | Chanel, Water (Replaces: W10266747) |
|
$ 73.96 | |||||
| 13 | W10212800 | Cycle Button (Replaces: W10311352) |
|
$ 81.62 | |||||
| 14 | W10006580 | Screw, Top |
|
- | |||||
| 16 | W10215814 | Assembly, User Interface |
|
$ 244.23 | |||||
| 17 | W10259049 | Cable, User Interface |
|
$ 170.48 | |||||
| 18 | W10215807 | Cycle Button, Spring |
|
$ 22.02 |
