01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts

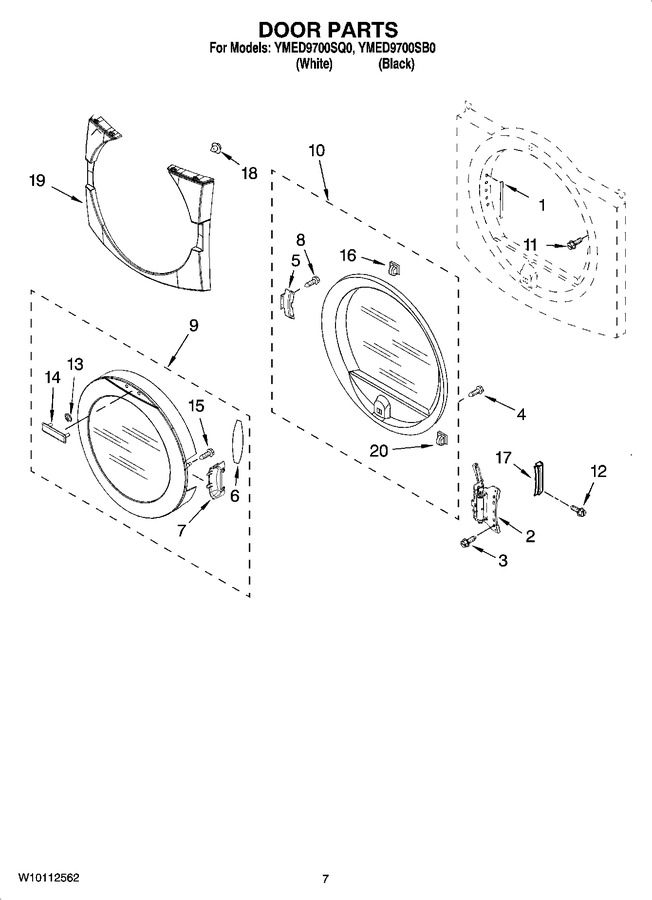

04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8563855		Plug-strip Front Panel				$ 39.51
2	W10111141		Door Hinge Assembly		Appelez-nous	-
3	WPW10159996		Screw, 10-32 X 3/8   (Replaces: W10159996)				$ 8.52
4	W10850046		Screw, 8-18 X 5/8   (Replaces: 9742177)			Immediately	$ 7.55
5	8529539		Bracket, Handle		Appelez-nous	-
6	8541011		Pad, Door Handle		Appelez-nous	-
7	W10133974		Filler, Door Handle (white)		Appelez-nous	-
7	8557268		Filler, Door Handle (black)				$ 58.50
8	WP308685		Screw, 10-16x1/2   (Replaces: 3393008)			Immediately	$ 7.87
9	W10098830		Door & Window Assembly (includes Illus. 6, 7, 13 & 14) (black)		Appelez-nous	-
9	W10133985		Door & Window Assembly (includes Illus. 6, 7, 13 & 14) (white)		Appelez-nous	-
10	8557501		Inner Door Assembly (includes Illus. 5, 8 16 & 20)				$ 160.79
11	WP355515		Screw, 8-18 X 11/16   (Replaces: 355515)				$ 8.48
12	3400859		Screw, 8-18 X 7/32				$ 13.88
13	WP2004333		Nut, Push-on (2)   (Replaces: 8558182)				$ 11.24
14	W10116209		Medallion		Appelez-nous	-
15	8533957		Screw				$ 12.60
16	279570		Catch, Door Assembly (1)   (Replaces: 690081)			Immediately	$ 8.89
17	8579980		Cover-hinge, Rotating (black)		Appelez-nous	-
17	8566486		Cover-hinge, Rotating (white)		Appelez-nous	-
18	8547091		Clip, Trim Panel		Appelez-nous	-
19	8579981		Trim & Clip Assembly (black)		Appelez-nous	-
19	8562596		Trim & Clip Assembly (white)		Appelez-nous	-
20	WP3389441		Catch, Door Assembly (1)   (Replaces: 3389441)				$ 6.20
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30
NI	72032		Paint, Touch-up (1/2oz.) (black)			Immediately	$ 18.69
NI	W10202939		Paint, Touch-up (1/2oz.) (meteorite)   (Replaces: 4396603)				$ 26.23
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 40.12
NI	350938		Paint, Pressurized Spray (12 Oz.) (primer, Gray)		Appelez-nous	-
NI	786020		Paint, Pressurized Spray (12 Oz.) (black)		Appelez-nous	-
NI	8529894		Kit, Hold Down		Appelez-nous	-
NI	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)				$ 12.34
NI	8541503		Kit, Stack Assembly			Immediately	$ 43.18
NI	4392067		Kit, Dryer Repair   (Replaces: 80047)			Immediately	$ 62.25

    View Diagram in Separate Window       Print Part List
