SELECT A DIAGRAM

01 - Top And Console Parts

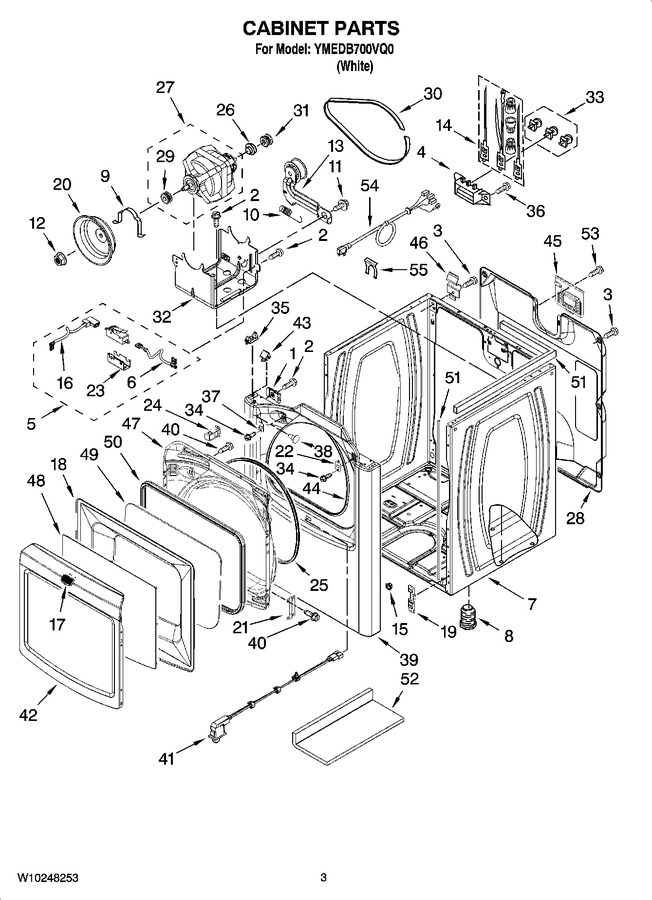

02 - Cabinet Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10007520		Clip, Ground (2)				$ 30.94
2	WP3390631		Screw, 10-16 X 3/8   (Replaces: 3390631)				$ 7.82
3	WP693995		Screw, 8-18 X 1/2   (Replaces: 693995)			Immediately	$ 7.19
4	WP3397659		Block Terminal   (Replaces: 3397659)				$ 23.02
5	WP8564012		Switch, Assembly   (Replaces: 8564012)				$ 99.87
6	W10167613		Wire, Belt (to Protector)		Appelez-nous	-
7	W10223154		Cabinet (includes Item 51 )   (Replaces: W10183827)				$ 337.50
8	49621		Foot - Optional (extended Length Package Of 2 (not Included)   (Replaces: 279810)			Immediately	$ 8.55
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 7.83
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 24.57
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.02
12	W10001340		Nut				$ 6.44
13	WPW10547292		Pulley Assembly   (Replaces: 8547160)			Immediately	$ 43.98
14	279318		Terminal, Brass & Tinned (3) (includes Illus. 33)			Immediately	$ 100.99
15	8578560		Plug, Hole (cabinet Base)				$ 91.37
16	8539892		Wire Motor (to Belt Switch)		Appelez-nous	-
17	W10153170		Badge				$ 28.25
18	W10111880		Bezel, Door				$ 332.02
19	W10854425		Clip (2)   (Replaces: 3394083)			Immediately	$ 15.56
20	8576626		Fly Wheel				$ 64.18
21	WP8565018		Hinge, Assembly (2)   (Replaces: 8579717)				$ 109.85
22	WPW10111888		Plug, Strike   (Replaces: W10111888)				$ 28.28
23	8564011		Bracket, Switch				$ 18.17
24	WPW10111905		Catch, Door Assembly   (Replaces: W10111905)			Immediately	$ 7.59
25	W10239307		Seal, Door   (Replaces: W10215728)				$ 134.54
26	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 132.46
27	WPW10448896		Motor, Assembly 60 Hz.   (Replaces: W10136932)			Immediately	$ 326.75
28	8558830		Panel, Rear				$ 139.44
29	W10139247		Pulley, Blower			Immediately	$ 127.19
30	WPW10136934		Belt, Drive   (Replaces: W10136934)			Immediately	$ 48.60
31	W10136930		Pulley, (motor Drum)				$ 48.18
32	8547158		Bracket, Motor				$ 65.31
33	279393		Terminal Block Screw Kit (for Terminal Block)			Immediately	$ 47.37
34	WP3400805		Screw, 8-18 X 3/8   (Replaces: 3400805)				$ 7.19
35	WP8568303		Locator, Snap-down (2)   (Replaces: 8568303)				$ 7.56
36	WP308685		Screw, 10-16x1/2   (Replaces: 3393008)			Immediately	$ 7.87
37	W10295405		Strike, Door   (Replaces: W10111906)				$ 109.61
38	W10144494		Plug, Hole				$ 35.14
39	W10111883		Front Panel		Appelez-nous	-
40	WP488627		Screw, 8-18 X 1/8   (Replaces: 342055)				$ 7.57
41	WPW10201785		Door Switch Assembly   (Replaces: W10201785)				$ 84.03
42	WPW10111875		Door, Outer   (Replaces: W10111875)				$ 163.51
43	WP8576625		Lock-top Front (2)   (Replaces: 8576625)				$ 7.60
44	W10044490		Seal, Front Panel				$ 32.43
45	W10110241		Cover, Terminal Block				$ 43.62
46	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 7.82
47	W10111878		Door, Inner				$ 208.36
48	W10111858		Window, Outer				$ 86.24
49	WPW10111857		Glass, Inner Door   (Replaces: W10111857)				$ 291.61
50	W10111859		Gasket, Inner Door				$ 115.48
51	W10226482		Seal, Foam		Appelez-nous	-
52	W11037143		Cover, Door Switch   (Replaces: W10215725)		Appelez-nous	-
53	W10850756		Screw Ground   (Replaces: 697776)				$ 7.76
54	W11095079		Power Cord   (Replaces: 8529008)			Immediately	$ 131.66
55	W11712577		Strain Relief-clip   (Replaces: 694415)			Immediately	$ 7.40

    View Diagram in Separate Window       Print Part List
