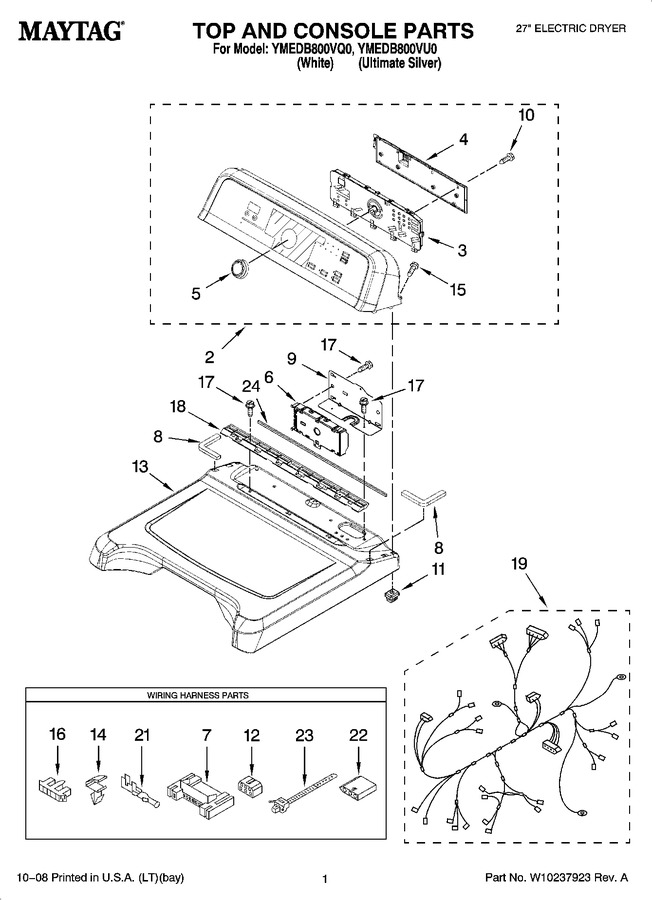

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	W10110299		Panel, Console (ultimate Silver)				$ 312.89
2	W10110296		Panel, Console (white)				$ 297.31
3	W10051114		User Interface		Appelez-nous	-
4	W10051124		Cover, Rear (ui Assembly)				$ 263.67
5	WPW10051126		Knob Assembly   (Replaces: W10051126)				$ 53.77
6	W10111620		Control Electronic				$ 337.82
7	3395683		Connector, Motor			Immediately	$ 54.45
8	W10180858		Foam-top (left-side)		Appelez-nous	-
8	W10219694		Foam-top (right-side)   (Replaces: W10180206)		Appelez-nous	-
9	8563853		Bracket, Machine Controller		Appelez-nous	-
10	WP4449745		Screw   (Replaces: W10003770)				$ 7.98
11	W10112673		Screw, Grommet (3)				$ 9.75
12	3347243		Connector 6-circuit		Appelez-nous	-
13	W10111848		Top (white)		Appelez-nous	-
13	W10111902		Top (ultimate Silver)		Appelez-nous	-
14	WP3394427		Clip-harness   (Replaces: 3394427)				$ 8.18
15	W10131402		Screw (3)		Appelez-nous	-
16	3397269		Connector-timer				$ 25.55
17	WP33001882		Screw, 8-18 X 1/2   (Replaces: 337686)				$ 83.71
18	W10110295		Bracket, Console		Appelez-nous	-
19	W10319801		Harness, Electric   (Replaces: W10111057)				$ 150.28
21	WP94614		Terminal   (Replaces: 94614)				$ 8.05
22	3936144		Connector				$ 21.22
23	WP3391018		Tie, Cable (push-mount)   (Replaces: 3391018)				$ 33.43
24	W10216185		Seal, Spill Guard		Appelez-nous	-
