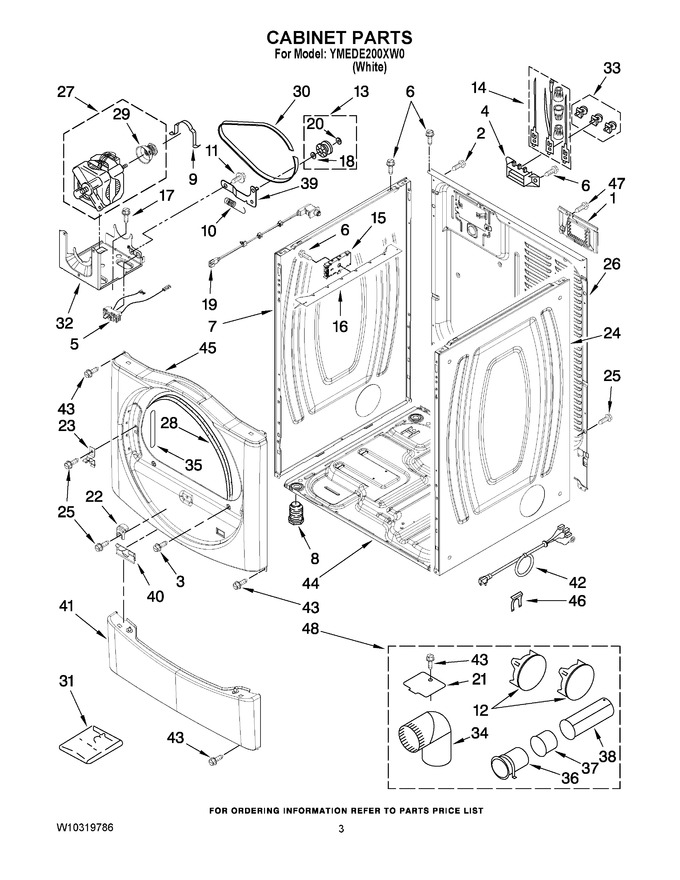

02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10119283		Cover, Terminal Block   (Replaces: 8576583)				$ 121.29
2	W10850756		Screw, Ground   (Replaces: 8533974)				$ 7.38
3	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.08
4	WP3397659		Block Terminal   (Replaces: 3397659)				$ 21.75
5	WPW10411937		Switch, Broken Belt   (Replaces: W10246525)			Immediately	$ 32.45
6	WP90767		Screw, 8/18 X 3/8   (Replaces: 90767)			Immediately	$ 7.43
7	W10542714		Panel, Side (l.h.)   (Replaces: 8565054)				$ 315.52
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 7.70
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 7.40
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 23.22
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 7.76
12	WPW10404617		Plug, Multivent   (Replaces: 49252)				$ 68.02
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 29.26
14	279318		Terminal, Brass & Tinned (3) (includes Illus. 33)			Immediately	$ 95.44
15	W10235613		Control Board				$ 288.51
16	WP8563727		Control Bracket   (Replaces: 8563727)				$ 161.72
17	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.62
18	WP233520		Washer, Thrust   (Replaces: 233520)			Immediately	$ 7.52
19	W10128087		Assembly, Door Switch				$ 85.98
20	WPW10121334		Tri-ring   (Replaces: W10121334)			Immediately	$ 6.80
21	WPW10354249		Cover-plate   (Replaces: 8066115)				$ 8.47
22	8565083		Ramp, Door		Appelez-nous	-
23	WP8565122		Strike, Door   (Replaces: 8565122)			Immediately	$ 7.79
24	W10542714		Panel, Side (r.h.)   (Replaces: 8565048)				$ 315.52
25	WP308685		Screw, 10-16x1/2   (Replaces: 3393008)			Immediately	$ 7.08
26	8565059		Panel, Rear				$ 244.90
27	279787		Motor, Assembly 60 Hz.   (Replaces: W10250900)			Immediately	$ 222.14
28	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 28.28
29	W10837625		Pulley 60 Hz.   (Replaces: 8578220)			Immediately	$ 11.49
30	WPW10112954		Belt, Drive   (Replaces: W10112954)			Immediately	$ 94.79
31	8572546		Kit, Stack Assembly			Immediately	$ 76.17
32	W11481730		Bracket, Motor   (Replaces: W10242878)			Immediately	$ 85.36
33	279393		Terminal Block Screw Kit (for Terminal Block)			Immediately	$ 50.09
34	WPW10416072		4`` - 90 Elbow   (Replaces: 49026)				$ 25.34
35	W10085210		Label, Hinge Hole Cover				$ 76.53
36	WP8563747		Exhaust Pipe & Bracket   (Replaces: 8563747)				$ 86.36
37	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 74.61
38	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 83.92
39	W10837240		Idler Bracket   (Replaces: 3388674)			Immediately	$ 32.20
40	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 19.95
41	WP8540621		Toe Panel   (Replaces: 8540621)				$ 170.44
42	W11095079		Power Cord   (Replaces: 8579325)			Immediately	$ 124.42
43	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.45
44	W11215531		Base, Cabinet   (Replaces: 8565046)				$ 328.82
45	WPW10117421		Front Panel (includes Items. 28 )   (Replaces: W10117421)				$ 267.51
46	W11712577		Stain-relief Clip   (Replaces: 694415)			Immediately	$ 6.99
47	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.43
48	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.75
NI	49621		Foot - Optional (extended Length Package Of 2 (not Included)   (Replaces: 279810)			Immediately	$ 7.70
