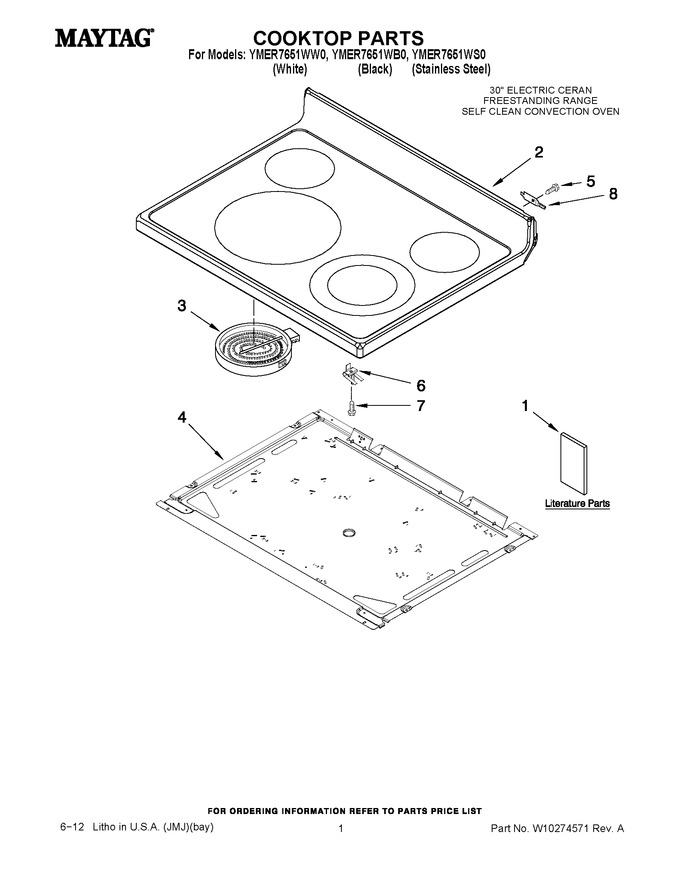

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10237516 | Tech Sheet |
|
- | |||||
| 1 | W10196159 | Installation Instructions |
|
- | |||||
| 1 | 9757143 | Template, Anti-tip (english/french) |
|
- | |||||
| 1 | 9757142 | Template, Anti-tip (english/french) |
|
- | |||||
| 1 | 9762761 | Brochure, Tips Safe Cooking |
|
- | |||||
| 1 | W10234646 | Owner?s Manual |
|
- | |||||
| 2 | W10301589 | Cooktop (black) (Replaces: W10211385) |
|
$ 915.89 | |||||
| 2 | W10296863 | Cooktop (white) (Replaces: W10211384) |
|
$ 598.56 | |||||
| 3 | WPW10178016 | Element, Surface (3000 W - Lf) (Replaces: W10178016) |
|
Immediately | $ 422.95 | ||||
| 3 | W11047722 | Element, Surface (2500 W - Rf) (Replaces: 8273992) |
|
Immediately | $ 132.46 | ||||
| 3 | W11171119 | Element, Surface (1200 W - Lr) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 4 | W10170526 | Pan, Radiant Elmt |
|
$ 270.57 | |||||
| 5 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 6 | WPW10225448 | Spring, Locator (Replaces: W10162042) |
|
Immediately | $ 10.40 | ||||
| 7 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 7.55 | |||||
| 8 | WP3195060 | Hinge, Pin (Replaces: 3195060) |
|
Immediately | $ 13.18 |
