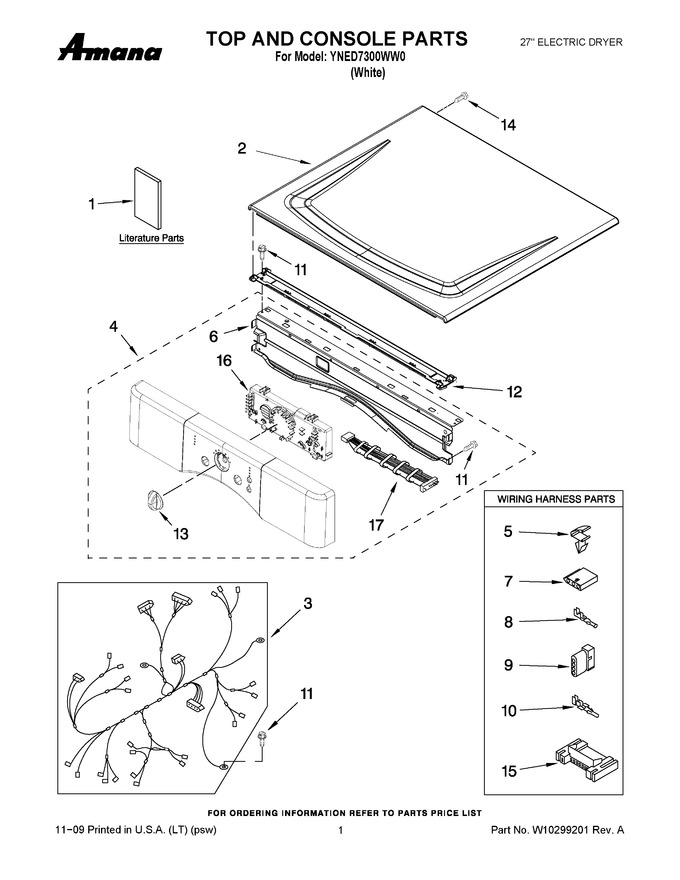

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10240875 | Use & Care Guide |
|
- | |||||
| 1 | W10238796 | Tech Sheet |
|
- | |||||
| 1 | W10240584 | Installation, Instruction |
|
- | |||||
| 2 | WPW10336080 | Top (Replaces: 8563730) |
|
$ 331.99 | |||||
| 3 | W10251444 | Harness, Main |
|
$ 76.79 | |||||
| 4 | W10215746 | Panel, Console |
|
$ 329.51 | |||||
| 5 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 6 | WP8565237 | Bracket, Console (Replaces: 8565237) |
|
$ 189.77 | |||||
| 7 | 353424 | Connector Sensor |
|
$ 18.95 | |||||
| 8 | WP94614 | Terminal (Replaces: 94614) |
|
$ 8.05 | |||||
| 9 | 3936144 | Plug, Terminal |
|
$ 21.22 | |||||
| 10 | 94613 | Terminal |
|
- | |||||
| 11 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 12 | WPW10266747 | Chanel, Water (Replaces: W10266747) |
|
$ 73.96 | |||||
| 13 | 8574974 | Assembly, Knob |
|
- | |||||
| 14 | W10006580 | Screw, Top |
|
- | |||||
| 15 | 3395683 | Connector, Motor |
|
Immediately | $ 54.45 | ||||
| 16 | W10215814 | Assembly, User Interface |
|
$ 244.23 | |||||
| 17 | W10259049 | Cable, User Interface |
|
$ 170.48 |
