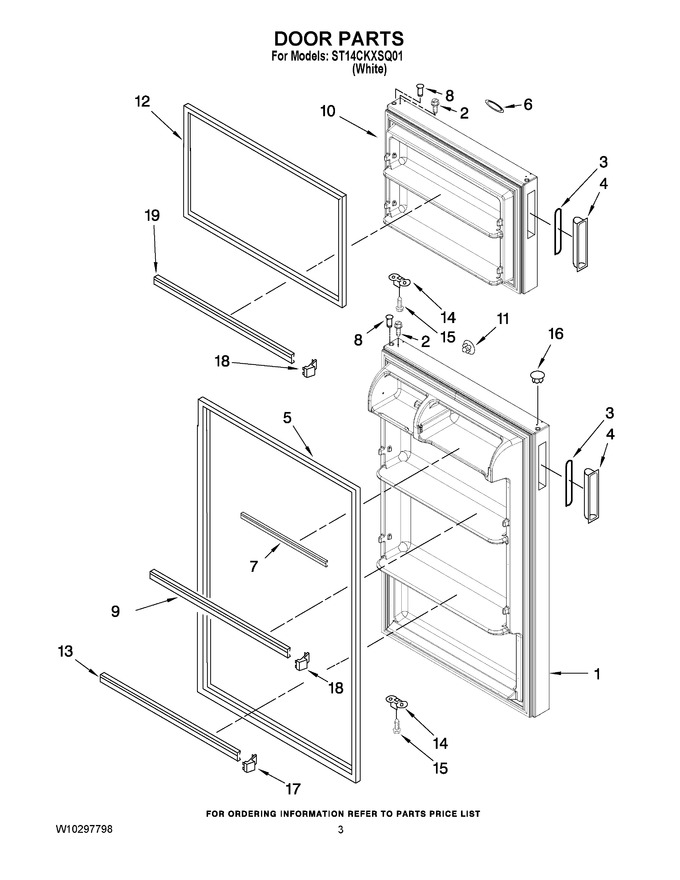

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2316197W | Refrigerator Door Includes Item No.5 |
|
$ 609.89 | |||||
| 2 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 3 | 2222107 | Gasket, Handle |
|
- | |||||
| 4 | WP984493 | Handle (Replaces: 984493) |
|
$ 114.49 | |||||
| 5 | WP2319265T | Door Gasket, Magnetic (Replaces: W10190033) |
|
Immediately | $ 184.89 | ||||
| 6 | 2204652 | Nameplate |
|
- | |||||
| 7 | W11129820 | Trim, Door Shelf (upper) (Replaces: W10234242) |
|
Immediately | $ 127.34 | ||||
| 8 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 8.14 | |||||
| 9 | WP2266727 | Trim, Door (middle) (Replaces: 2266727) |
|
Immediately | $ 92.50 | ||||
| 10 | 2316196W | Freezer Door Includes Item No.12 |
|
$ 545.55 | |||||
| 11 | WP2189000 | Hole Plug (Replaces: 2189000) |
|
Immediately | $ 7.77 | ||||
| 12 | WP2319263T | Door Gasket, Magnetic (Replaces: W10190031) |
|
Immediately | $ 169.53 | ||||
| 13 | WP2266738 | Trim, Door Shelf (lower) (Replaces: 2266738) |
|
$ 111.69 | |||||
| 14 | 2217944 | Bracket, Door Stop |
|
$ 26.55 | |||||
| 15 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 16 | WP2212648 | Hole Plug (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 17 | WP2195916K | Plug, Trim (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 18 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 19 | WP2266727 | Trim-door (2) (Replaces: 2266727) |
|
Immediately | $ 92.50 |
