SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Optional

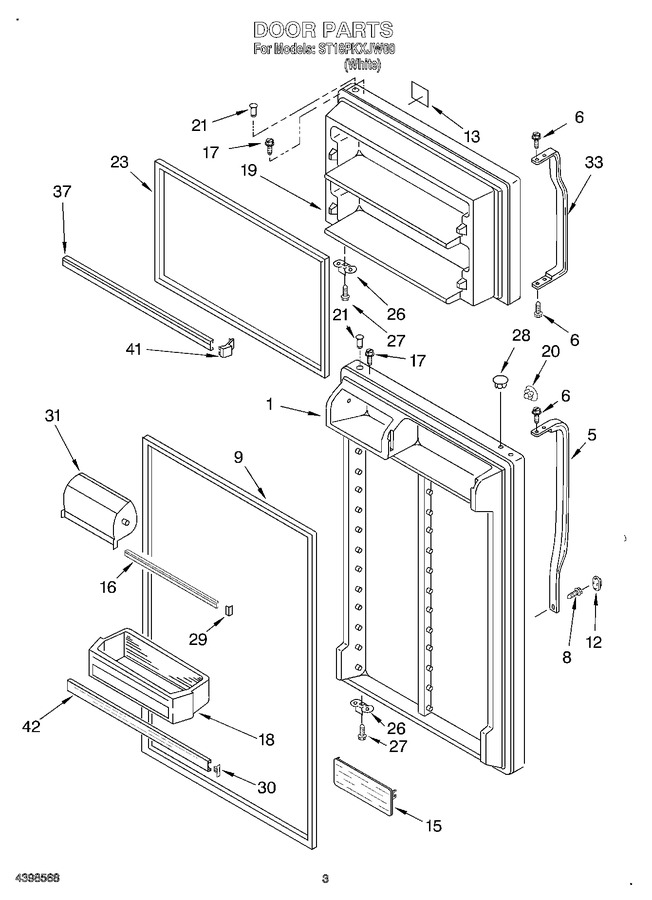

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183898		Refrigerator Door (includes No.9 & No.21)		Appelez-nous	-
5	WP2202807W		Handle, R.c.   (Replaces: 2202807W)				$ 162.98
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
8	WP8281146		Screw   (Replaces: 8281146)				$ 8.18
9	2159057		Door Gasket, Magnetic (mist Beige)			Immediately	$ 164.66
12	WP2202819W		Cover, Screw   (Replaces: 2202819W)			Immediately	$ 8.14
13	2204652		Nameplate		Appelez-nous	-
15	WP2188234		Shelf, Flip-up   (Replaces: 2188234)			Immediately	$ 60.31
16	WP2201061		Trim, Door Shelf   (Replaces: 2180027)				$ 124.32
17	WP8281206		Screw   (Replaces: 489028)				$ 8.37
18	2195394		Door Bin (3)		Appelez-nous	-
19	2182487		Freezer Door Panel		Appelez-nous	-
20	WP2189000		Hole Plug   (Replaces: 2189000)			Immediately	$ 7.77
21	WP2183003		Thimble   (Replaces: 2183003)				$ 8.14
23	2159327		Door Gasket, Magnetic (mist Beige)			Immediately	$ 164.58
26	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 13.37
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
28	WP2212648		Hole Plug   (Replaces: 844478)			Immediately	$ 8.19
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 8.03
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
31	WP2218113		Door, Compartment   (Replaces: 2171036)			Immediately	$ 50.33
33	WP2202806W		Handle, F.c.   (Replaces: 2202806W)				$ 155.40
37	2195946		Trim-door (2)				$ 46.58
41	WP2195916K		Endcap (4)   (Replaces: 2195916)			Immediately	$ 13.18
42	WPW10421484		Trim, Door   (Replaces: 2195949)				$ 136.25

    View Diagram in Separate Window       Print Part List
