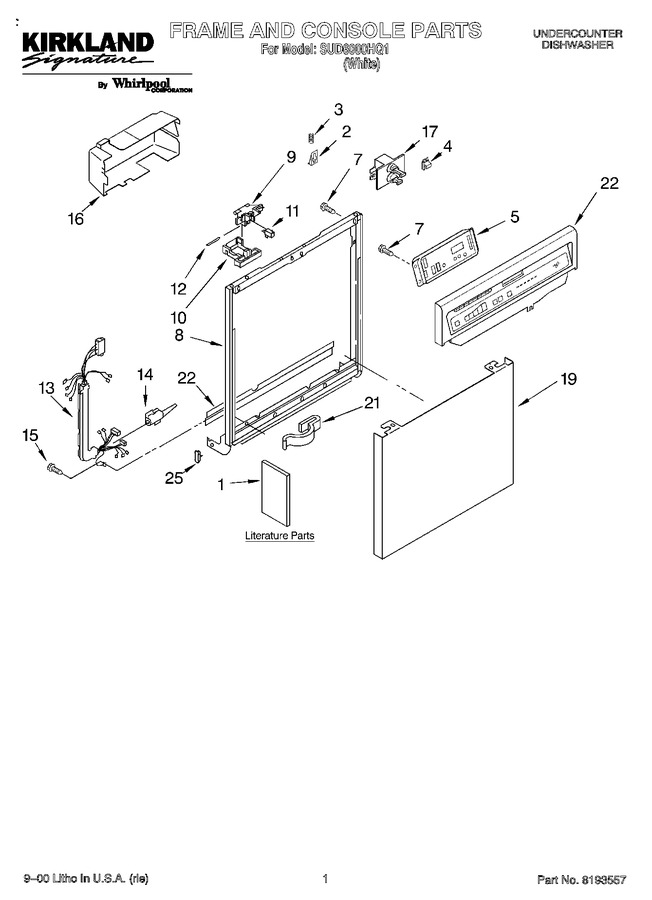

01 - Frame & Console, Literature


02 - Inner Door


03 - Tub Assembly


04 - Pump And Motor


05 - Dishrack


06 - Miscellaneous, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT0677967		Tech Sheet (do-it Yourself, Manual)		Appelez-nous	-
1	LIT8051229		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT3367007		Literature Parts (instructions, Installation (supplement) (locating Your Water Supply))		Appelez-nous	-
1	LIT8274745		Literature Parts (guide, Energy)		Appelez-nous	-
1	LIT8051560		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT3384565		Literature Parts (tech Sheet) (english)		Appelez-nous	-
1	LIT3384566		Literature Parts (tech Sheet) (french)		Appelez-nous	-
2	675782		Catch, Door   (Replaces: 3379357)				$ 8.91
3	675782		Spring, Door Catch   (Replaces: 3379358)				$ 8.91
4	675813		Fuse, Thermal   (Replaces: 3376359)			Immediately	$ 54.34
5	3384563		Control, Electronic		Appelez-nous	-
7	WP304231		Screw,   (Replaces: 304231)			Immediately	$ 7.33
8	9743028		Door Frame (black)				$ 62.19
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 91.56
10	3372231		Lever, Latch White		Appelez-nous	-
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	8271433		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP3400892		Screw   (Replaces: 3400892)				$ 7.42
16	8051304		Cover, Control		Appelez-nous	-
17	3374501		Motor, Dual Wax				$ 45.99
19	3379376		Panel Front (white)				$ 116.81
21	WP98997		Clip, Harness   (Replaces: 98997)				$ 10.48
22	8051720		Console (includes Item 2) (white)		Appelez-nous	-
25	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 9.91
