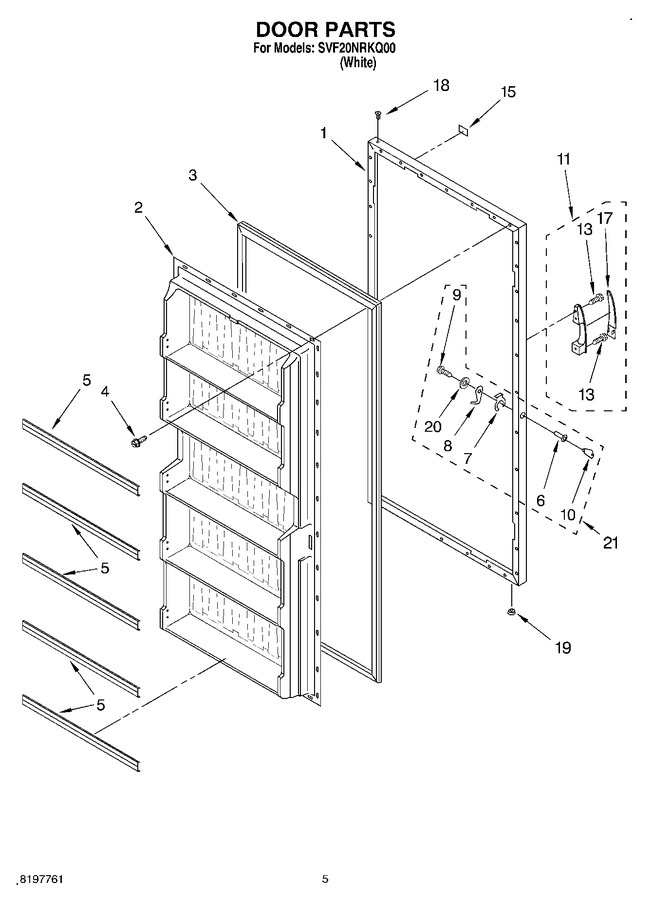

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390666		Exterior Door (includes Insulation)		Appelez-nous	-
2	4390671		Interior Panel		Appelez-nous	-
3	WP4-81049-001		Door Gasket   (Replaces: 4357120)				$ 382.56
4	4390598		Screw (kit Of 50)   (Replaces: 4357290)				$ 22.04
5	4390613		Trim Shelf		Appelez-nous	-
6	4357145		Lock, Body   (Replaces: 4356839)				$ 27.79
7	4356842		Spring, Clip Mounting				$ 12.24
8	4357289		Lock, Bolt				$ 22.23
9	WP489478		Screw, Lock Bolt   (Replaces: 4356843)				$ 8.18
10	WP4356840		Key   (Replaces: 4356840)				$ 11.28
11	4390667		Handle Kit (includes Items 13 & 17)		Appelez-nous	-
13	WP489491		Screw   (Replaces: 4390669)				$ 7.30
15	4356727		Nameplate		Appelez-nous	-
17	4390668		Insert, Handle		Appelez-nous	-
18	4390672		Bushing, Hinge		Appelez-nous	-
19	3-24898-007		Vent Plug   (Replaces: 4357067)				$ 11.34
20	4356992		Washer		Appelez-nous	-
21	4357145		Lock Assembly (includes 6, 7, 8, 9, 10 & 20)				$ 27.79
