01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts

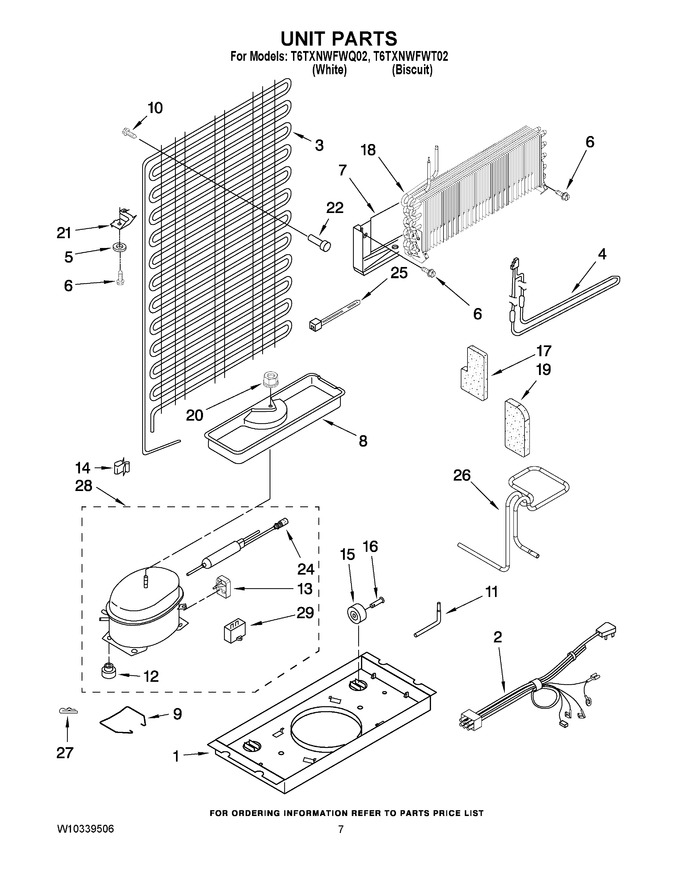

04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10222451 | Support Plate, Compressor |
|
$ 32.07 | |||||
| 2 | W10151654 | Wire Assy. Unit |
|
$ 293.67 | |||||
| 3 | WPW10219348 | Condenser (Replaces: W10219348) |
|
$ 295.28 | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2263749) |
|
Immediately | $ 93.70 | ||||
| 5 | 8526417 | Washer (Replaces: VS611) |
|
$ 13.94 | |||||
| 6 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 7 | 2319224 | Heat Shield |
|
$ 116.21 | |||||
| 8 | 2201801 | Evaporating Tray |
|
$ 78.52 | |||||
| 9 | 2212996 | Retainer |
|
$ 12.11 | |||||
| 10 | 8533892 | Screw |
|
- | |||||
| 11 | W11676464 | Tube, Process (Replaces: VS20001) |
|
$ 103.44 | |||||
| 12 | WPW10169124 | Grommet (service) (Replaces: 2264447) |
|
Immediately | $ 7.19 | ||||
| 13 | W10805623 | Start Device Combination (start Relay And Overload For Production Compressor Only) (service) (Replaces: W10249964) |
|
$ 126.63 | |||||
| 14 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 15 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 16 | WP2264756 | Axle, Rivet (Replaces: 2264756) |
|
$ 7.19 | |||||
| 17 | 2262191 | Wedge-evaporator |
|
- | |||||
| 18 | WP2263920 | Evaporator Assy. (Replaces: 2263920) |
|
Immediately | $ 317.35 | ||||
| 19 | 2262192 | Wedge-evaporator |
|
- | |||||
| 20 | 285002 | Hex Nut (Replaces: 489153) |
|
$ 12.24 | |||||
| 21 | 4386951 | Clip, Condenser Mounting (Replaces: 2172892) |
|
- | |||||
| 22 | 2258452 | Bracket, Condenser |
|
- | |||||
| 24 | W10843121 | Drier (production) (Replaces: W10190413) |
|
Immediately | $ 52.57 | ||||
| 24 | WPW10143759 | Drier (service) (Replaces: W10143759) |
|
Immediately | $ 30.78 | ||||
| 25 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 7.90 | |||||
| 26 | W10289688 | Tube, Discharge (incl. Pre Cooler) |
|
- | |||||
| 27 | 24364001 | Clip, Compressor |
|
- | |||||
| 28 | W10285060 | Compressor (includes Items 12, 13, 24 & 29) (also Order 482801 Installation Kit & 876765 Tube Kit) (Replaces: W10252075) |
|
$ 703.38 | |||||
| 29 | WPW10662129 | Capacitator (service) (Replaces: 2169373) |
|
Immediately | $ 58.86 | ||||
| 29 | WPW10662129 | Capacitator (production) (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| NI | N/P | Refrigerant Charge (3.75 Ozs. R134a)) |
|
- | |||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 128.09 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access (1/2) |
|
- | |||||
| NI | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 130.71 | |||||
| NI | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 91.35 | ||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 105.25 |
