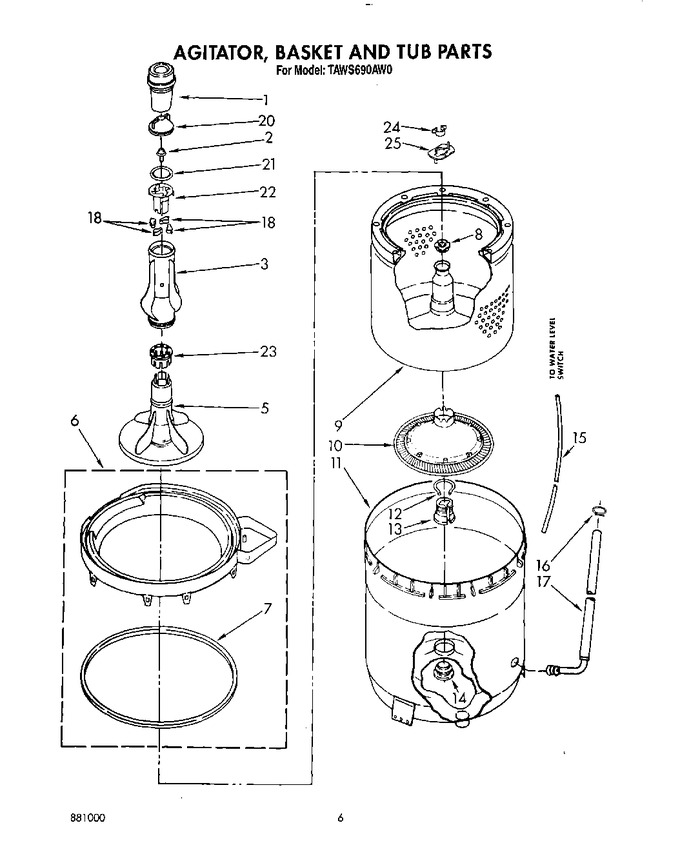

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 63580 | Dispenser, Fabric Softener |
|
Immediately | $ 2.63 | ||||
| 2 | WP358237 | Screw & Washer (Replaces: 358237) |
|
Immediately | $ 8.86 | ||||
| 3 | WP3348752 | Mover, Clothes (Replaces: 3348752) |
|
$ 257.47 | |||||
| 5 | WP3347288 | Agitator (Replaces: 3347288) |
|
Immediately | $ 137.84 | ||||
| 6 | W10880720 | Tub Ring (Replaces: 63851) |
|
Immediately | $ 233.34 | ||||
| 7 | WP3976308 | Gasket, Tub Ring (Replaces: 63852) |
|
Immediately | $ 29.66 | ||||
| 8 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 11.56 | ||||
| 9 | W10389328 | Basket & Balance Ring Assy. (Replaces: 3350649) |
|
$ 424.81 | |||||
| 10 | 285868 | Filter, Plate (includes Illus. 12) (Replaces: 62941) |
|
Immediately | $ 22.76 | ||||
| 11 | 3361596 | Tub (Replaces: 388893) |
|
$ 321.89 | |||||
| 12 | 62942 | Lock, Filter |
|
$ 7.59 | |||||
| 13 | WP389140 | Block, Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 14 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 9.98 | ||||
| 15 | WP353244 | Hose, Pressure Switch (Replaces: 3347780) |
|
Immediately | $ 59.93 | ||||
| 16 | WP596669 | Clamp, Hose (Replaces: 356436) |
|
Immediately | $ 8.82 | ||||
| 17 | 63323 | Hose, Bleach |
|
$ 60.00 | |||||
| 18 | 80040 | Dog, Agitator Clutch (4) (Replaces: 387091) |
|
Immediately | $ 3.64 | ||||
| 20 | WPW10074580 | Barrier, Cap (Replaces: 3347290) |
|
Immediately | $ 13.02 | ||||
| 21 | WPW10072840 | Seal-inner Cap (Replaces: 3348855) |
|
Immediately | $ 8.72 | ||||
| 22 | 285811 | Cam Driven (Replaces: 3351001) |
|
Immediately | $ 32.59 | ||||
| 23 | 285587 | Spacer, Thrust (Replaces: 3350389) |
|
Immediately | $ 4.42 | ||||
| 24 | WP3354845 | Clip, Agitator (Replaces: 3354845) |
|
$ 24.74 | |||||
| 25 | WP8543666 | Washer, Agitator (Replaces: 3355921) |
|
Immediately | $ 12.31 |
