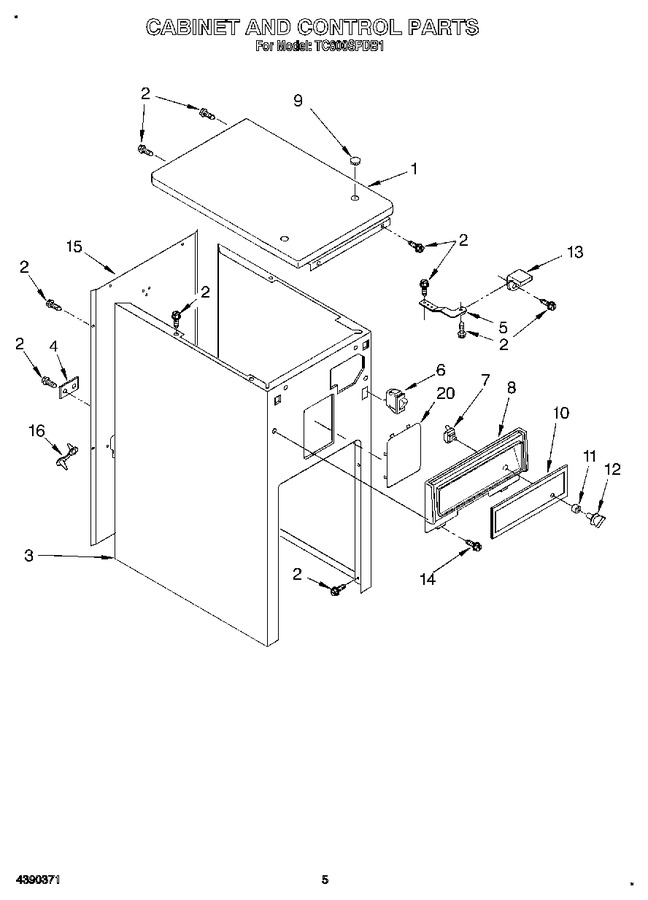

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9871008		Top, Cabinet		Appelez-nous	-
2	WP489069		Screw, 8 X 1/2ab   (Replaces: 776076)			Immediately	$ 8.40
3	9870921		Cabinet		Appelez-nous	-
4	775676		Plate, Power Cord		Appelez-nous	-
5	W11729437		Bracket, Retainer (r.h.)   (Replaces: 9870157)			Immediately	$ 24.48
5	W11729437		Bracket, Retainer (l.h.)   (Replaces: 9870158)			Immediately	$ 24.48
6	WP4387911		Switch, Drawer Tilt   (Replaces: 4152058)			Immediately	$ 41.64
7	675382		Switch, Rotary   (Replaces: 608824)				$ 246.48
8	4151493		Escutcheon, Control		Appelez-nous	-
9	W11705838		Plug, Hole   (Replaces: 9870905)		Appelez-nous	-
10	9871208		Insert, Escutcheon		Appelez-nous	-
11	WP777383		Nut, Rotary Switch   (Replaces: 777383)				$ 12.83
12	9871257		Knob, Rotary Switch				$ 26.67
13	WP780239		Bracket, Mounting Mounting (2) (alternate)   (Replaces: 780239)				$ 28.53
14	776559		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
15	9870863		Panel, Back		Appelez-nous	-
16	W11705832		Clamp, Wire   (Replaces: 777035)		Appelez-nous	-
20	9871160		Plate, Cover		Appelez-nous	-
