Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9871008 Top, Cabinet Appelez-nous -
2 WP489478 Screw, 8 X 1/2 Ab   (Replaces: 489478) Special Order $ 8.18

3 9870921 Cabinet Appelez-nous -
4 775676 Plate, Power Cord Appelez-nous -
6 WP4387911 Switch, Drawer Tilt   (Replaces: 4152058) In-Stock Immediately $ 41.64

7 675382 Switch, Rotary   (Replaces: 608824) Special Order $ 246.48

8 9871591 Escutcheon, Control Appelez-nous -
9 W11705838 Plug, Hole   (Replaces: 9870905) Appelez-nous -
10 9871596 Insert, Escutcheon Appelez-nous -
11 WP777383 Nut, Rotary Switch   (Replaces: 777383) Special Order $ 12.83

12 WP9870487 Knob, Rotary Switch   (Replaces: 9870487) Special Order $ 66.00

14 246131 Screw, 6-20 X 3/8 (2) Appelez-nous -
15 9870863 Panel, Back Appelez-nous -
16 W11705832 Clamp, Wire   (Replaces: 777035) Appelez-nous -
20 9871160 Plate, Cover Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

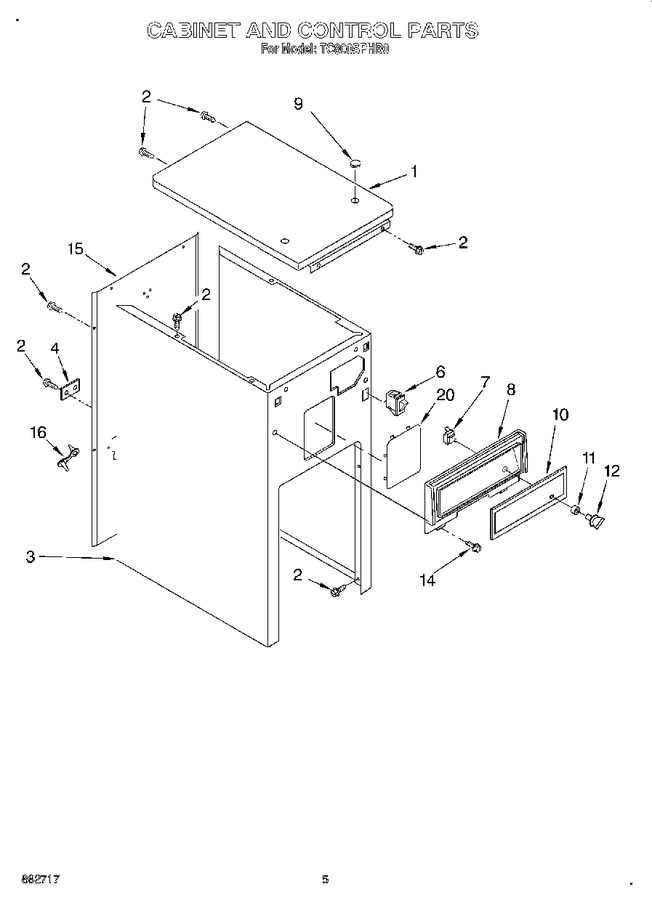

Diagram for TC800SPHB0
