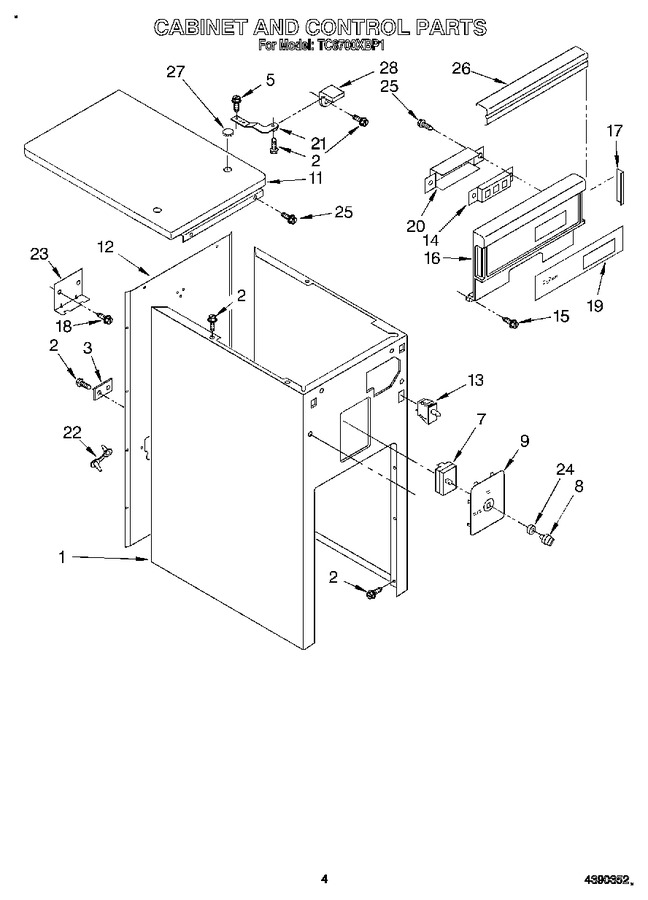

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9870921		Cabinet		Appelez-nous	-
2	WP489069		Screw, 8 X 1/2ab   (Replaces: 776076)			Immediately	$ 8.40
3	775676		Plate, Power Cord		Appelez-nous	-
5	WPW10139210		Screw   (Replaces: 4152204)				$ 8.03
7	777380		Switch, Rotary				$ 162.31
8	WP4155141		Knob, Switch   (Replaces: 4155141)				$ 59.68
9	9871161		Plate, Switch				$ 95.20
10	W11705832		Clamp, Wire   (Replaces: 777035)		Appelez-nous	-
11	9871008		Top, Cabinet		Appelez-nous	-
12	9870863		Panel, Back		Appelez-nous	-
13	WP4387911		Switch, Drawer Tilt   (Replaces: 4152058)			Immediately	$ 41.64
14	W10856868		Assembly, Switch   (Replaces: 9870870)		Appelez-nous	-
15	776559		Screw, 6-20 X 3/8ab		Appelez-nous	-
16	4154909		Escutcheon, Control		Appelez-nous	-
17	4154910		Trim, Side		Appelez-nous	-
18	WP489069		Screw, 8-18 X 1/2   (Replaces: 780230)			Immediately	$ 8.40
19	4154904		Insert, Decorative		Appelez-nous	-
20	9870244		Shield, Switch		Appelez-nous	-
21	W11729437		Bracket, Retainer (l.h.)   (Replaces: 780465)			Immediately	$ 24.48
21	W11729437		Bracket, Retainer (r.h.)   (Replaces: 780464)			Immediately	$ 24.48
22	W11820597		Bushing, Power Cord   (Replaces: 776119)		Appelez-nous	-
23	9870125		Bracket, Protector		Appelez-nous	-
24	WP777383		Nut, Switch   (Replaces: 777383)				$ 12.83
25	777459		Screw, 8-18 X 1/2		Appelez-nous	-
26	4154862		Trim, Top		Appelez-nous	-
27	W11705838		Plug, Hole   (Replaces: 9870905)		Appelez-nous	-
28	WP780239		Bracket, Mounting (2) (alternate)   (Replaces: 780239)				$ 28.53
