SELECT A DIAGRAM

01 - Motor And Drive, Literature


02 - Frame


03 - Powerscrew And Ram


04 - Container


05 - Cabinet And Control


06 - Accessory


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

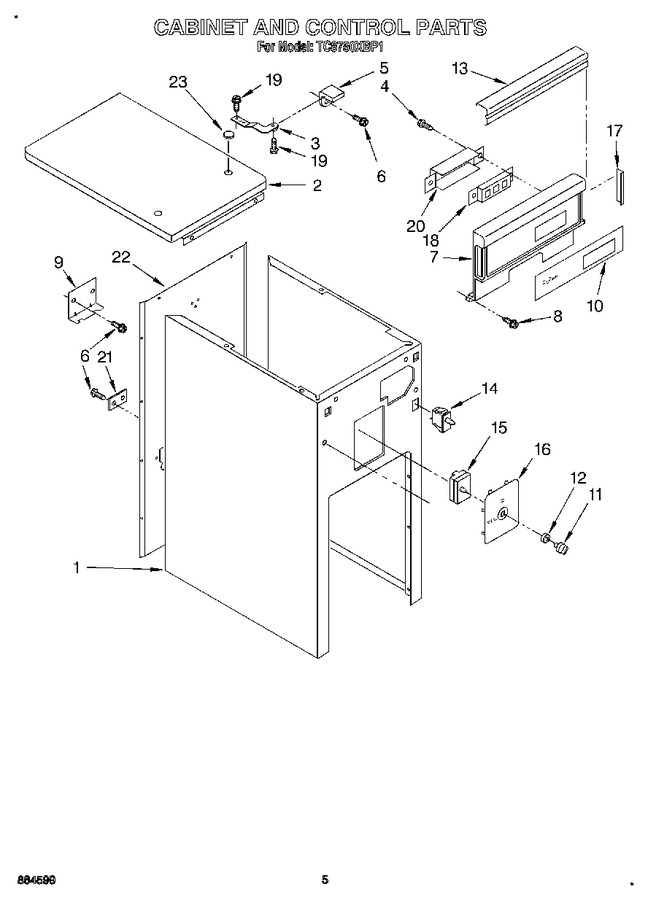

1	WP9870913		Cabinet   (Replaces: 9870913)				$ 298.34
2	WP9870865		Top, Cabinet   (Replaces: 9870865)				$ 334.62
3	W11729437		Bracket, Retainer (l.h.)   (Replaces: 780465)			Immediately	$ 24.48
3	W11729437		Bracket, Retainer (r.h.)   (Replaces: 780464)			Immediately	$ 24.48
4	777459		Screw, 8-18 X 1/2		Appelez-nous	-
5	WP780239		Bracket, Mounting (2) (alternate)   (Replaces: 780239)				$ 28.53
6	WP489069		Screw, 8 X 1/2ab (6)   (Replaces: 776076)			Immediately	$ 8.40
7	4155144		Escutcheon, Control		Appelez-nous	-
8	776559		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
9	9870125		Bracket, Protector		Appelez-nous	-
10	4155143		Insert, Decorative		Appelez-nous	-
11	WP4155141		Knob, Switch   (Replaces: 4155141)				$ 59.68
12	WP777383		Nut, Switch   (Replaces: 777383)				$ 12.83
13	4154862		Trim, Top		Appelez-nous	-
14	WP4387911		Switch, Drawer Tilt   (Replaces: 4152058)			Immediately	$ 41.64
15	777380		Switch, Rotary				$ 162.31
16	9870356		Plate, Switch		Appelez-nous	-
17	4154910		Trim, Side		Appelez-nous	-
18	W10856868		Assembly, Switch   (Replaces: 9870869)		Appelez-nous	-
19	WPW10139210		Screw   (Replaces: 4152204)				$ 8.03
20	9870244		Shield, Switch		Appelez-nous	-
21	775676		Plate, Power Cord		Appelez-nous	-
22	9870863		Panel, Back		Appelez-nous	-
23	4151479		Plug, Hole		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
