SELECT A DIAGRAM

01 - Motor And Drive, Lit/optional


02 - Frame


03 - Powerscrew And Ram


04 - Container

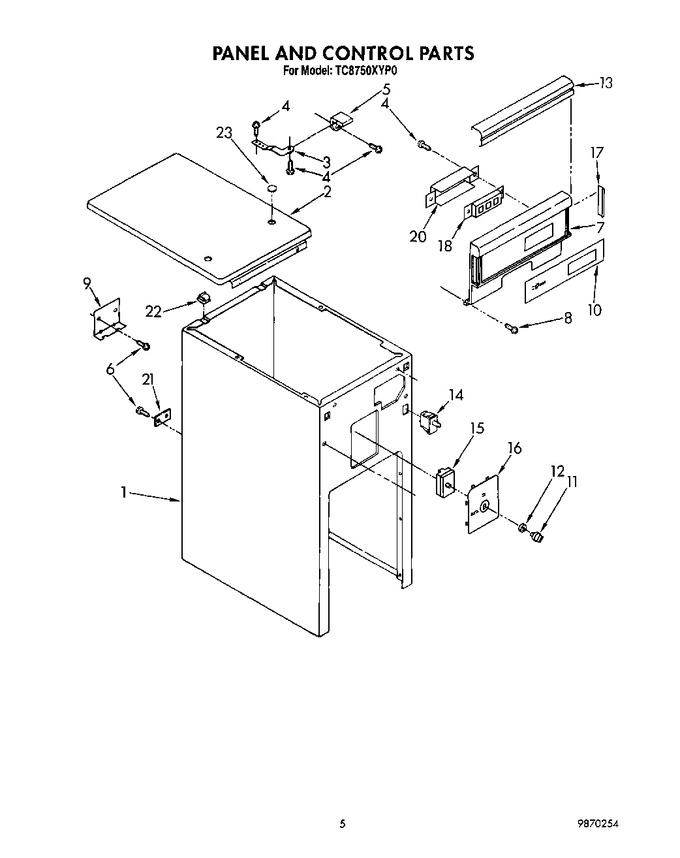

05 - Panel And Control


06 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4152066		Cabinet		Appelez-nous	-
2	4151204		Top, Cabinet		Appelez-nous	-
3	W11729437		Bracket, Retainer (l.h.)   (Replaces: 780465)			Immediately	$ 24.48
3	W11729437		Bracket, Retainer (r.h.)   (Replaces: 780464)			Immediately	$ 24.48
4	777459		Screw, 8-18 X 1/2		Appelez-nous	-
5	WP780239		Bracket, Mounting (2) (alternate)   (Replaces: 780239)				$ 28.53
6	WP489069		Screw, 8 X 1/2ab (6)   (Replaces: 776076)			Immediately	$ 8.40
7	4155144		Escutcheon, Control		Appelez-nous	-
8	776559		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
9	9870125		Bracket, Protector		Appelez-nous	-
10	4155143		Insert, Decorative		Appelez-nous	-
11	WP4155141		Knob, Switch   (Replaces: 4155141)				$ 59.68
12	WP777383		Nut, Switch   (Replaces: 777383)				$ 12.83
13	4154862		Trim, Top		Appelez-nous	-
14	WP4387911		Switch, Drawer Tilt   (Replaces: 4152058)			Immediately	$ 41.64
15	777380		Switch, Rotary				$ 162.31
16	9870356		Plate, Switch		Appelez-nous	-
17	4154910		Trim, Side		Appelez-nous	-
18	W10856868		Assembly, Switch   (Replaces: 4155149)		Appelez-nous	-
20	9870123		Shield, Switch		Appelez-nous	-
21	775676		Plate, Power Cord		Appelez-nous	-
22	776017		Clip, Top Mount		Appelez-nous	-
23	4151479		Plug, Hole		Appelez-nous	-
