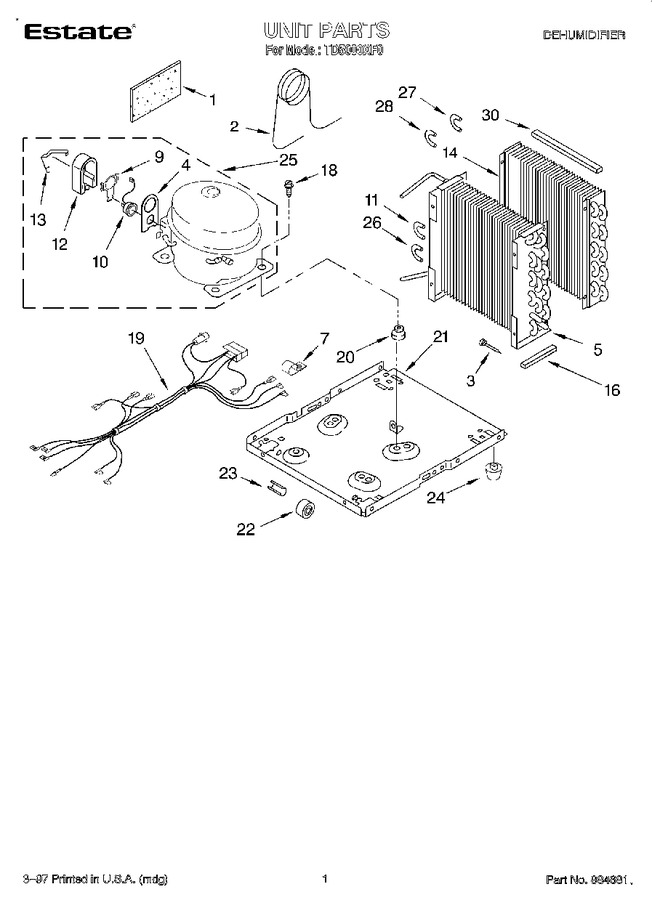

1	1162650		Insulation, Restrictor Tube		Appelez-nous	-
2	1168191		Tube, Restrictor (36.0`` Length)		Appelez-nous	-
3	WP1162526		Strainer   (Replaces: 1162526)				$ 84.42
4	1167017		Gasket, Cover		Appelez-nous	-
5	1167544		Condenser		Appelez-nous	-
7	1180752		Relief, Strain		Appelez-nous	-
9	1167008		Spring, Overload		Appelez-nous	-
10	1167004		Overload		Appelez-nous	-
11	708531		Bend, Return (10)		Appelez-nous	-
12	1167005		Cover, Terminal		Appelez-nous	-
13	1167006		Retainer, Cover		Appelez-nous	-
14	1168184		Evaporator		Appelez-nous	-
16	1162372		Seal		Appelez-nous	-
18	1166034		Bolt, 1/4-28 X 1`` (4)		Appelez-nous	-
19	1167026		Harness, Wire		Appelez-nous	-
20	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
21	1157584		Base		Appelez-nous	-
22	998726		Roller (2)		Appelez-nous	-
23	489015		Roll Pin-2.0 Lg		Appelez-nous	-
24	951886		Glide-natural (2)		Appelez-nous	-
25	1167003		Compressor, (complete Assembly)		Appelez-nous	-
26	708532		Bend, Return (4)		Appelez-nous	-
27	855199		Bend, Return (8)		Appelez-nous	-
28	1169760		Bend, Return (1)		Appelez-nous	-
30	1162348		Seal, Evaporator Top		Appelez-nous	-
	LIT1166026		Sheet, Tech		Appelez-nous	-
	LIT1166025		Diagram, Wiring		Appelez-nous	-
	LIT1181714		Use & Care Guide		Appelez-nous	-
