SELECT A DIAGRAM

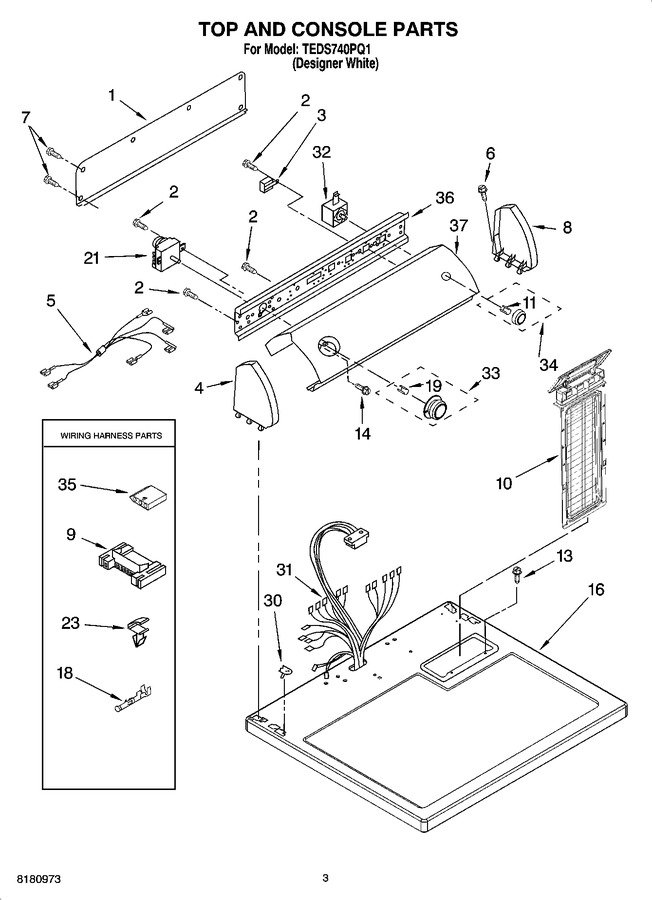

01 - Cabinet Parts


02 - Top And Console Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
2	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
3	WP694419		Buzzer   (Replaces: 694419)				$ 134.05
4	279960		Cap, End (l.h.)   (Replaces: 8274437)				$ 87.57
5	8539888		Jumper, Wire (pts To Buzzer)		Appelez-nous	-
6	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
7	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
8	279960		Cap, End (r.h.)   (Replaces: 8274434)				$ 87.57
9	3395683		Housing, Connector (motor)			Immediately	$ 54.45
10	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
13	W11693756		Screw, 8-15 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
16	8557930		Top		Appelez-nous	-
18	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
19	WP688805		Clip   (Replaces: 688805)			Immediately	$ 8.20
21	WP8299778		Timer, 60 Hz.   (Replaces: 8299778)			Immediately	$ 232.09
23	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
31	WPW10450292		Harness, Wiring   (Replaces: 8299867)				$ 279.32
32	WP8543274		Switch, Push-to-start   (Replaces: 8543274)				$ 80.90
33	8557456		Timer Knob Assembly		Appelez-nous	-
34	8557460		Knob, Control				$ 23.37
35	3936144		Connector				$ 21.22
36	8271418		Bracket, Control				$ 57.15
37	3977948		Panel, Control		Appelez-nous	-
