SELECT A DIAGRAM

01 - Cabinet Parts

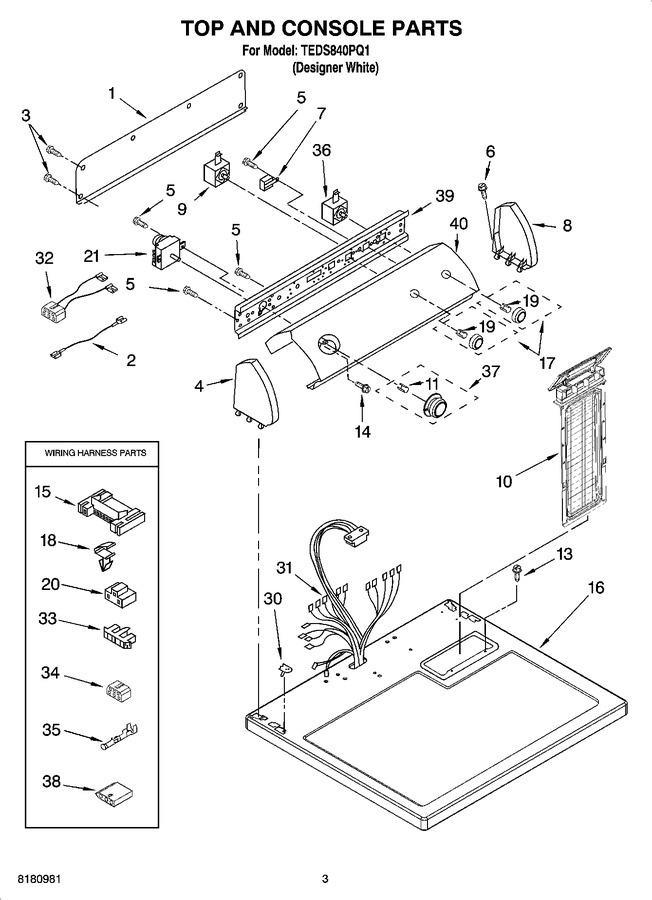

02 - Top And Console Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
2	3401684		Wire, Jumper (black)				$ 34.57
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
4	279960		Cap, End (l.h.)   (Replaces: 8274437)				$ 83.40
5	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.82
6	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
8	279960		Cap, End (r.h.)   (Replaces: 8274434)				$ 83.40
9	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 124.91
10	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 52.03
11	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.81
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.22
15	3395683		Connector (motor)			Immediately	$ 51.86
16	8557930		Top		Appelez-nous	-
17	8557460		Knob, Control (2)				$ 23.37
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
19	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.81
20	3401144		Connector, (pts Relay)				$ 12.20
21	WP3979617		Timer, 60 Hz.   (Replaces: 3979617)			Immediately	$ 367.42
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
31	8299873		Harness, Wiring		Appelez-nous	-
32	8539893		Wire, Jumper (temperature)				$ 18.84
33	3397269		Connector, Timer				$ 25.55
34	3347243		Connector 6-circuit		Appelez-nous	-
35	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
36	WP3398095		Switch, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
37	8557456		Timer Knob Assembly		Appelez-nous	-
38	3936144		Connector				$ 20.21
39	8271418		Bracket, Control				$ 57.15
40	3977949		Panel, Control		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
