SELECT A DIAGRAM

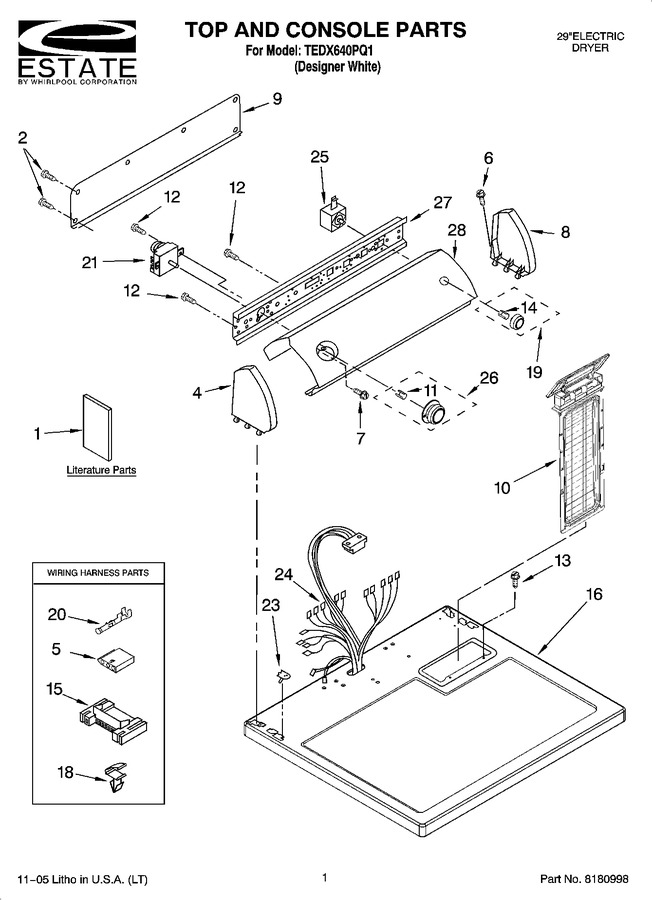

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
1	8578193		Guide, Use & Care		Appelez-nous	-
1	8577187		Instructions, Installation		Appelez-nous	-
1	8533781		Sheet, Cycle Feature		Appelez-nous	-
1	8528187		Wiring Diagram		Appelez-nous	-
2	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
4	279960		Cap, End (l.h.)   (Replaces: 8274437)				$ 87.57
5	3936144		Connector				$ 21.22
6	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
7	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
8	279960		Cap, End (r.h.)   (Replaces: 8274434)				$ 87.57
9	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
10	W10874409		Screen, Lint   (Replaces: 8558467)			Immediately	$ 67.01
11	WP688805		Clip   (Replaces: 688805)			Immediately	$ 8.20
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
15	3395683		Connector (motor)			Immediately	$ 54.45
16	8557930		Top		Appelez-nous	-
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
19	8557462		Knob, Push-to-start				$ 54.65
20	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
21	WP8299781		Timer, 60 Hz.   (Replaces: 8299781)			Immediately	$ 380.55
23	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
24	WPW10450292		Harness, Wiring   (Replaces: 8299867)				$ 279.32
25	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
26	8557456		Timer Knob Assembly		Appelez-nous	-
27	8271418		Bracket, Control				$ 57.15
28	3977947		Panel, Control		Appelez-nous	-
