01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts, Optional Parts

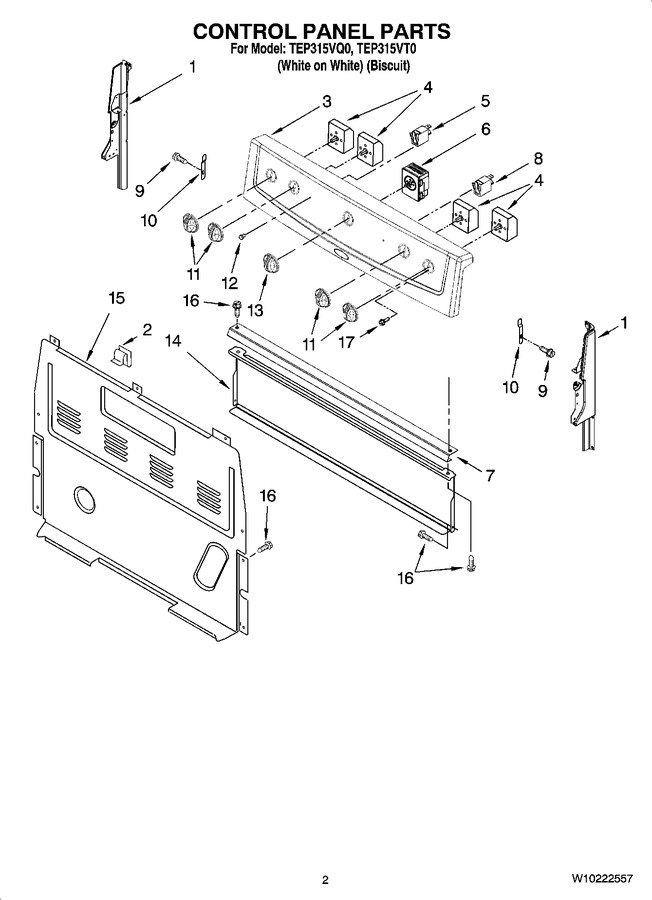

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white Left Hand)   (Replaces: W10184433)				$ 42.45
1	W11219370		Endcap (white Right Hand)   (Replaces: W10184434)				$ 60.83
1	W11230611		Endcap (biscuit Left Hand)   (Replaces: W10184435)		Appelez-nous	-
1	W11230612		Endcap (biscuit Right Hand)   (Replaces: W10184436)		Appelez-nous	-
2	WP8273564		Clip   (Replaces: 8273564)				$ 12.66
3	W10202168		Panel, Backguard (biscuit)		Appelez-nous	-
3	W11263359		Panel, Backguard (white)   (Replaces: W10202167)		Appelez-nous	-
4	5500-287		Switch, Infinite (use W/ 6`` Element)   (Replaces: 3148951)			Immediately	$ 52.39
4	5500-287		Switch, Infinite (use W/ 8`` Element)   (Replaces: 3148953)			Immediately	$ 52.39
5	WP8523265		Indicator, Light   (Replaces: 8523265)			Immediately	$ 86.31
6	WP9762215		Electric Control   (Replaces: 9762215)			Immediately	$ 365.17
7	W10525121		Bracket, Console Mounting   (Replaces: W10182322)				$ 98.85
8	WP8523266		Indicator, Light   (Replaces: 8523266)				$ 117.50
9	3196166		Screw				$ 7.36
10	3196200		Clip, Spring (2)				$ 10.45
11	WPW10203524		Knob, Infinite (4) (white)   (Replaces: W10203524)				$ 21.82
11	W10203529		Knob, Infinite (4) (biscuit)		Appelez-nous	-
12	WP3196068		Lens, Ind. (2)   (Replaces: 3196068)			Immediately	$ 6.26
13	W10203523		Knob, Thermostat (biscuit)		Appelez-nous	-
13	W10203522		Knob, Thermostat (white)				$ 17.54
14	8053912		Shield, Heat				$ 34.55
15	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
16	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
17	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
