01 - Cooktop Parts

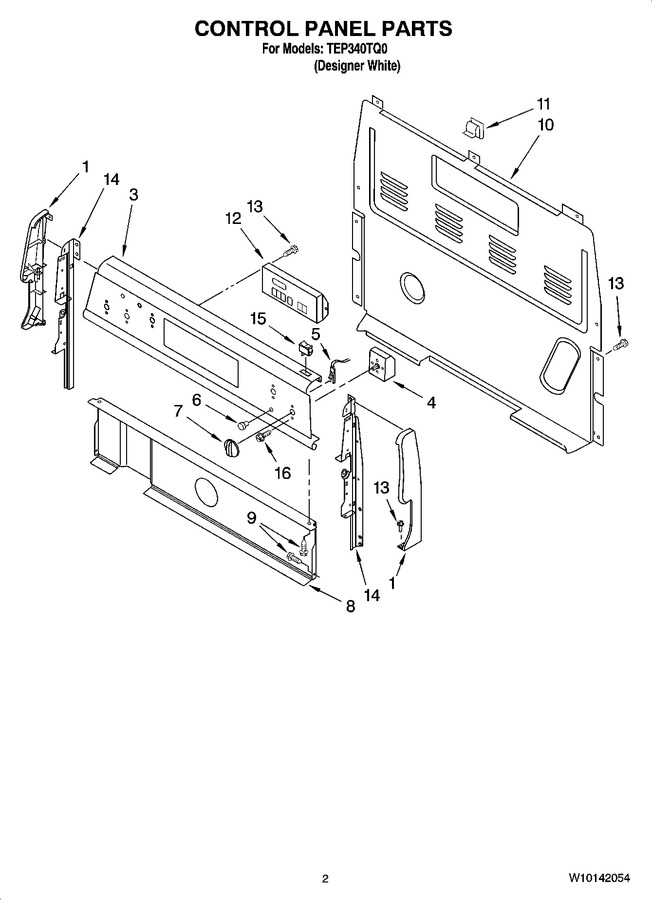

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer Parts
05 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3186190 | Endcap (white Left Hand) |
|
- | |||||
| 1 | 3186191 | Endcap (white Right Hand) |
|
- | |||||
| 3 | W10119168 | Panel, Console (white) |
|
- | |||||
| 4 | WP3148952 | Switch, Infinite (right Front) (Replaces: 3148952) |
|
Immediately | $ 69.51 | ||||
| 4 | 5500-287 | Switch, Infinite (right Rear) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 5 | WP8523265 | Light, Indicator Surface Unit (2) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WP3196068 | Lens, Light (3) (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | 3196232 | Knob, Infinite (4) (white) |
|
$ 16.71 | |||||
| 8 | 8523280 | Shield, Heat |
|
- | |||||
| 9 | W10276642 | Screw (Replaces: 4449746) |
|
$ 6.41 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 12.66 | |||||
| 12 | 6610461 | Control, Range (white) |
|
$ 320.43 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | 8523409 | Support, Endcap (right Hand) |
|
- | |||||
| 14 | 8523408 | Support, Endcap (left Hand) |
|
- | |||||
| 15 | 3149360 | Switch, Rocker |
|
$ 89.01 | |||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 |
