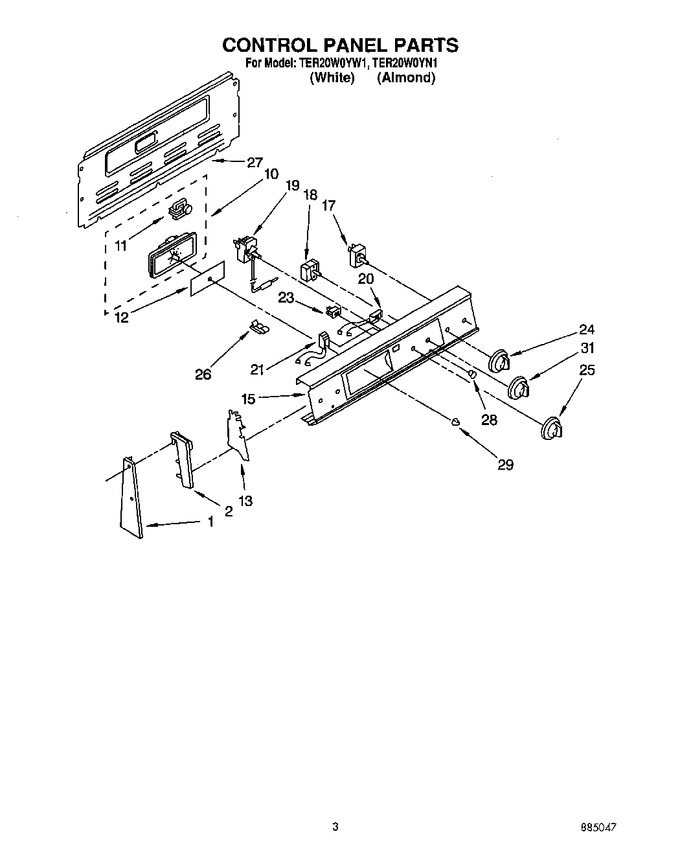

02 - Control Panel


03 - Oven


04 - Door And Drawer, Lit/optional


05 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313191		End Trim R.h.		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
1	WP3390631		Screw, 10a X 3/8 (2)   (Replaces: 309112)				$ 8.25
1	313190		End Trim L.h.		Appelez-nous	-
2	3150442		End Cap L.h.		Appelez-nous	-
2	3150441		End Cap R.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
10	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
10	3183059		Timer, Clock		Appelez-nous	-
11	309822		Motor, Timer		Appelez-nous	-
12	3148852		Glass, Timer		Appelez-nous	-
13	313608		Shield (2)		Appelez-nous	-
13	WP965173		Screw, No.8x3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
15	3169194		Panel, Control		Appelez-nous	-
15	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 8.47
17	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.89
17	5500-287		Switch, Infinite (6`` Element (2))   (Replaces: 3148951)			Immediately	$ 52.39
17	5500-287		Switch, Infinite (8`` Element (2))   (Replaces: 3148953)			Immediately	$ 52.39
18	3150430		Switch, Selector				$ 66.71
18	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.89
19	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 8.30
19	661150		Thermostat, Oven		Appelez-nous	-
20	314031		Light, Indicator (oven)				$ 62.88
21	3150662		Light, Indicator (surface Unit)		Appelez-nous	-
23	WP4314961		Switch, Oven Light   (Replaces: 3148564)				$ 93.95
24	WP3149983		Knob, Control (4) (infinite Switch)   (Replaces: 3149983)				$ 24.39
25	3149987		Knob, Control (thermostat)				$ 25.12
26	313570		Tube Clip		Appelez-nous	-
27	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 8.47
27	313195		Rear Cover Control Panel		Appelez-nous	-
28	313101		Lens, Amber (2)		Appelez-nous	-
29	3169182		Knob, Timer		Appelez-nous	-
31	3149984		Knob, Selector		Appelez-nous	-
