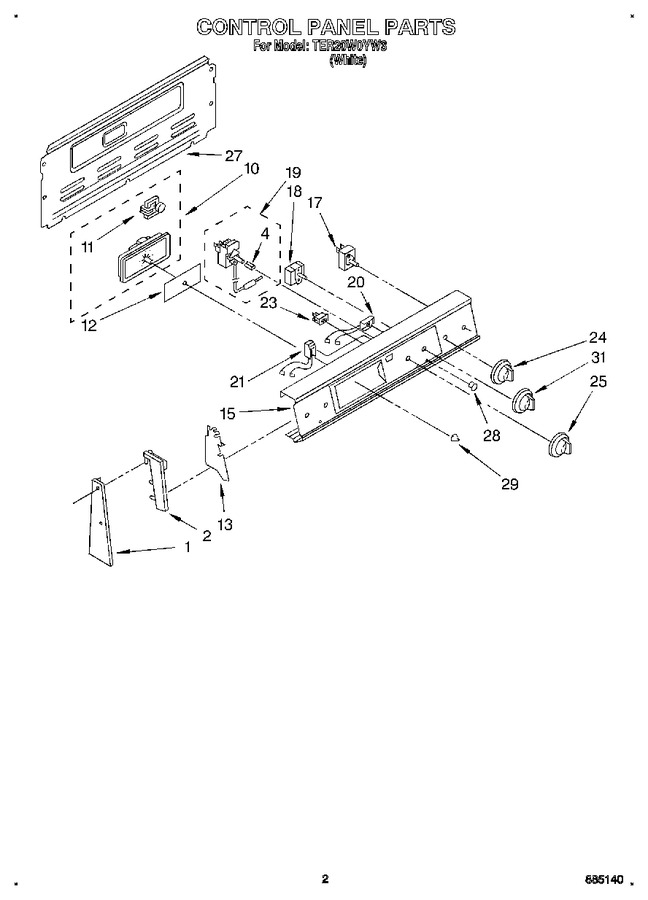

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3187672		End Trim L.h.		Appelez-nous	-
1	3187671		End Trim R.h.		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
2	3150442		End Cap L.h.		Appelez-nous	-
2	3150441		End Cap R.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
4	3169525		Sleeve, Adaptor		Appelez-nous	-
10	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
10	3169298		Timer, Clock		Appelez-nous	-
11	309822		Motor, Timer		Appelez-nous	-
12	3148852		Glass, Timer		Appelez-nous	-
13	WP965173		Screw, No.8x3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
13	313608		Shield (2)		Appelez-nous	-
15	3169194		Panel, Control		Appelez-nous	-
15	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.85
17	5500-287		Switch, Infinite (6`` Element (2))   (Replaces: 3148951)			Immediately	$ 52.39
17	5500-287		Switch, Infinite (8`` Element (2))   (Replaces: 3148953)			Immediately	$ 52.39
17	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
18	3150430		Switch, Selector				$ 66.71
18	308119		Screw, 8-32 X 1/4 (2)		Appelez-nous	-
19	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 7.60
19	3169302		Thermostat, Oven				$ 193.75
20	314031		Light, Indicator (oven)				$ 62.88
21	3150662		Light, Indicator (surface Unit)		Appelez-nous	-
23	WP4314961		Switch, Oven Light   (Replaces: 3148564)				$ 89.48
24	WP3149983		Knob, Control (4) (infinite Switch)   (Replaces: 3149983)				$ 23.23
25	3149987		Knob, Control (thermostat)				$ 25.12
27	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.85
27	3187332		Rear Cover Control Panel		Appelez-nous	-
28	313101		Lens, Amber (2)		Appelez-nous	-
29	3169182		Knob, Timer		Appelez-nous	-
31	3149984		Knob, Selector		Appelez-nous	-
