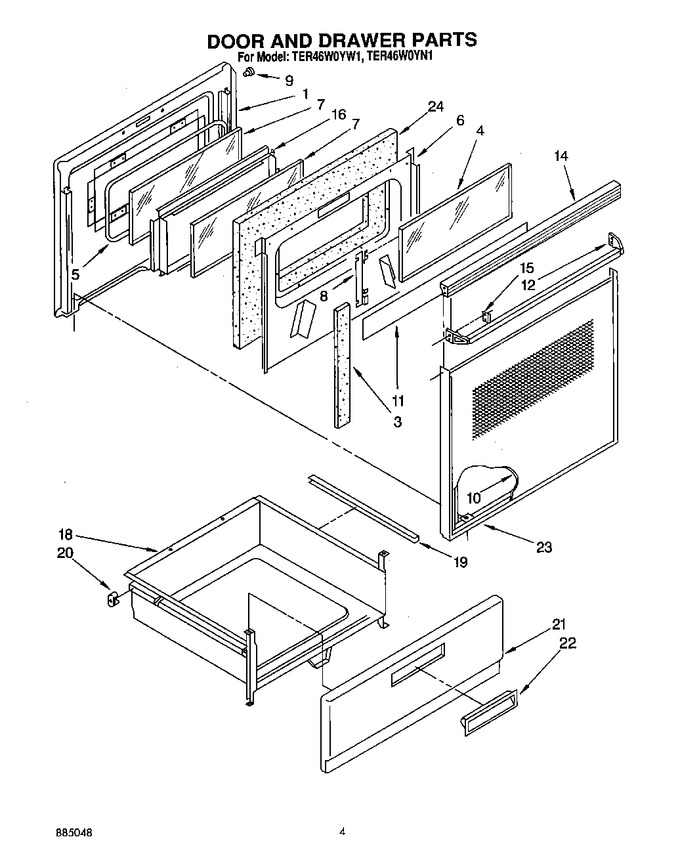

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172218		Liner, Door		Appelez-nous	-
1	3148443		Screw, (6) 8-18x5/16		Appelez-nous	-
1	247326		Screw (2) 10-24x1/2		Appelez-nous	-
3	3148441		Seal, (2)		Appelez-nous	-
4	3169202		Glass, Clear		Appelez-nous	-
5	3148183		Seal, Window				$ 7.41
6	3148159		Retainer, Insulation		Appelez-nous	-
6	3148443		Screw (4)		Appelez-nous	-
7	WP3169203		Glass, (2) Inside/outside   (Replaces: 3169203)				$ 158.33
8	3148187		Retainer, (2) Glass		Appelez-nous	-
9	3148182		Bumper (4)		Appelez-nous	-
10	3148185		Glass, Panel		Appelez-nous	-
11	3169191		Foil, Door		Appelez-nous	-
12	WP355515		Screw (4)   (Replaces: 355515)				$ 8.48
12	3148228		Handle, Door		Appelez-nous	-
14	307748		Screw (2)		Appelez-nous	-
14	3148223		Top, Door		Appelez-nous	-
15	3148282		Clip, Mtg (2)				$ 8.69
16	3148443		Screw (6)		Appelez-nous	-
16	3148234		Frame, Inner Glass		Appelez-nous	-
18	327887		Drawer, Utility		Appelez-nous	-
19	309329		Protector, Drawer Side (2)		Appelez-nous	-
20	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
20	307980		Glide, Rear (2)		Appelez-nous	-
21	3150677		Panel, Drawer (almond)		Appelez-nous	-
21	WP488627		Panel, Drawer (screw, 8-18 X 1/2 (3))   (Replaces: 313349)				$ 8.11
21	3150676		Panel, Drawer (white)		Appelez-nous	-
22	3150613		Handle, Drawer (almond)		Appelez-nous	-
22	3150612		Handle, Drawer (white)		Appelez-nous	-
23	3148235		Frame, Door		Appelez-nous	-
23	WP355515		Screw (4)   (Replaces: 355515)				$ 8.48
23	307748		Screw (3)		Appelez-nous	-
24	3147951		Insulation		Appelez-nous	-
