01 - Cooktop Parts

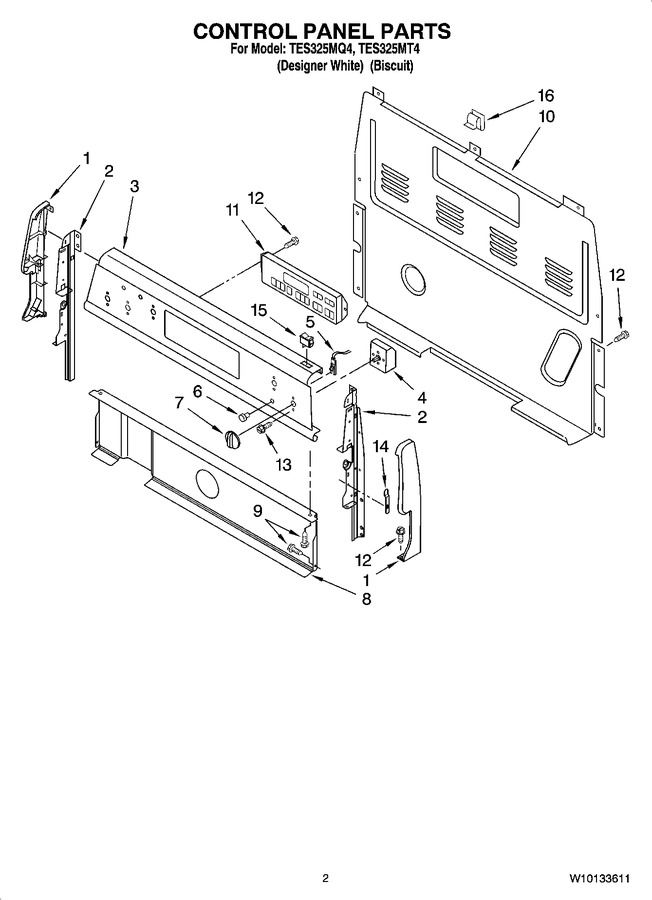

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3186190 | Endcap (white Lh) |
|
- | |||||
| 1 | 3186191 | Endcap (white Rh) |
|
- | |||||
| 1 | 8272507 | Endcap (biscuit, Lh) |
|
- | |||||
| 1 | 8272508 | Endcap (biscuit, Rh) |
|
- | |||||
| 2 | 8523408 | Support, Endcap (left Hand) |
|
- | |||||
| 2 | 8523409 | Support, Endcap (right Hand) |
|
- | |||||
| 3 | W10134199 | Panel, Console (biscuit) |
|
- | |||||
| 3 | W10119168 | Panel, Console (white) |
|
- | |||||
| 4 | WP3148952 | Switch, Infinite (right Front) (Replaces: 3148952) |
|
Immediately | $ 69.51 | ||||
| 4 | WP3149400 | Switch, Infinite (right Rear) (Replaces: 3148954) |
|
Immediately | $ 90.51 | ||||
| 5 | WP8523265 | Light, Ind. (2) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WP3196068 | Lens, Light (2) (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | 3196232 | Knob, Infinite (4) (white) |
|
$ 16.71 | |||||
| 7 | WP3196231 | Knob, Infinite (4) (biscuit) (Replaces: 8272506) |
|
Immediately | $ 22.00 | ||||
| 8 | 8053912 | Shield, Heat |
|
$ 34.55 | |||||
| 9 | W10276642 | Screw (Replaces: 4449746) |
|
$ 6.41 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | 6610448 | Control, Range (white) |
|
$ 302.13 | |||||
| 11 | 6610481 | Control, Range (biscuit) |
|
- | |||||
| 12 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 13 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 14 | 3196200 | Clip, Spring (2) |
|
$ 10.45 | |||||
| 15 | 3149360 | Switch, Rocker (white) |
|
$ 89.01 | |||||
| 15 | 8273501 | Switch, Rocker (biscuit) |
|
- | |||||
| 16 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 12.66 |
