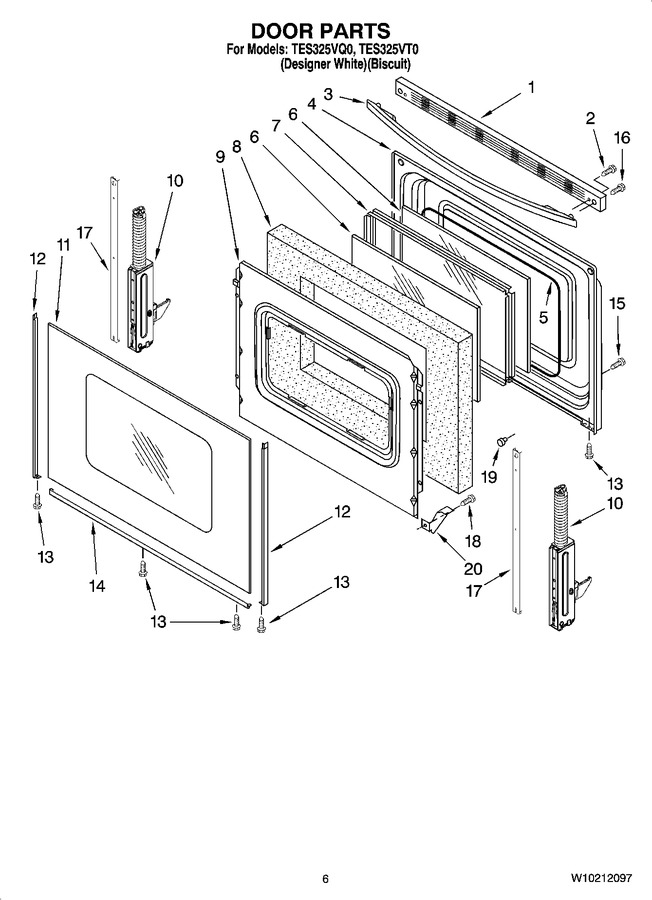

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10016450		Trim, Top (biscuit)				$ 81.21
1	W10016370		Trim, Top (white)				$ 79.85
2	8534065		Screw				$ 35.92
3	WPW10202216		Handle, Door (white)   (Replaces: W10202216)				$ 370.67
3	W10202218		Handle, Door (biscuit)				$ 101.67
4	9761340		Liner, Door				$ 361.12
5	8522415		Seal, Window				$ 75.50
6	WP9758164		Glass, Inner (2)   (Replaces: 9758164)				$ 159.93
7	3186290		Frame, Glass		Appelez-nous	-
8	WPW10278991		Insulation, Door   (Replaces: 8272618)			Immediately	$ 101.37
9	9761499		Retainer, Insul.				$ 325.33
10	W10347466		Hinge, Door (2)   (Replaces: 9761493)			Immediately	$ 219.84
11	WP9762476		Glass, Outer (white)   (Replaces: 9762476)				$ 332.66
11	9762478		Glass, Outer (biscuit)		Appelez-nous	-
12	WP8523173		Trim, Side (biscuit Right Hand)   (Replaces: 8523173)				$ 123.53
12	WP8523166		Trim, Side (white Left Hand)   (Replaces: 8523166)			Immediately	$ 84.23
12	WP8523172		Trim, Side (white Right Hand)   (Replaces: 8523172)			Immediately	$ 69.93
12	WP8523167		Trim, Side (biscuit Left Hand)   (Replaces: 8523167)				$ 119.10
13	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
14	WP8523177		Trim, Lower (black)   (Replaces: 8523177)			Immediately	$ 165.86
14	W11594186		Trim, Lower (white)   (Replaces: 8523175)			Immediately	$ 61.37
15	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
16	WPW10200660		Screw   (Replaces: W10178180)			Immediately	$ 8.24
17	W11502236		Strap, Door   (Replaces: W10113759)			Immediately	$ 27.68
18	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
19	238614		Bumper, Door (2)   (Replaces: 3195809)				$ 84.79
20	W10137382		Clip, Panel (2)			Immediately	$ 48.42
	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
	261582		Grease		Appelez-nous	-
	313660		Clip, Wire Ground		Appelez-nous	-
	WP3196154		Screw   (Replaces: 3196154)				$ 8.44
	3184020		Wire, Ground   (Replaces: 311227)				$ 86.92
	W11396691		Harness, Wire (surface Unit)   (Replaces: W10196280)				$ 189.76
	W11172524		Harness, Wire Door Switch/sensor   (Replaces: W10084660)				$ 217.19
	W10251772		Harness, Wire (main)   (Replaces: W10114335)		Appelez-nous	-
	W11839019		Anti-tip Kit   (Replaces: W10017440)			Immediately	$ 28.54
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
	4396923		Broiler Pan Assy			Immediately	$ 60.71
	3184478		Cleaner, Glass		Appelez-nous	-
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922)				$ 94.14
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	511873		Paint, Touch-up (1/2oz.) (white (porcelain (2 Oz.))				$ 51.75
	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 27.77
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	W11244557		Screw   (Replaces: 3196173)				$ 14.29
