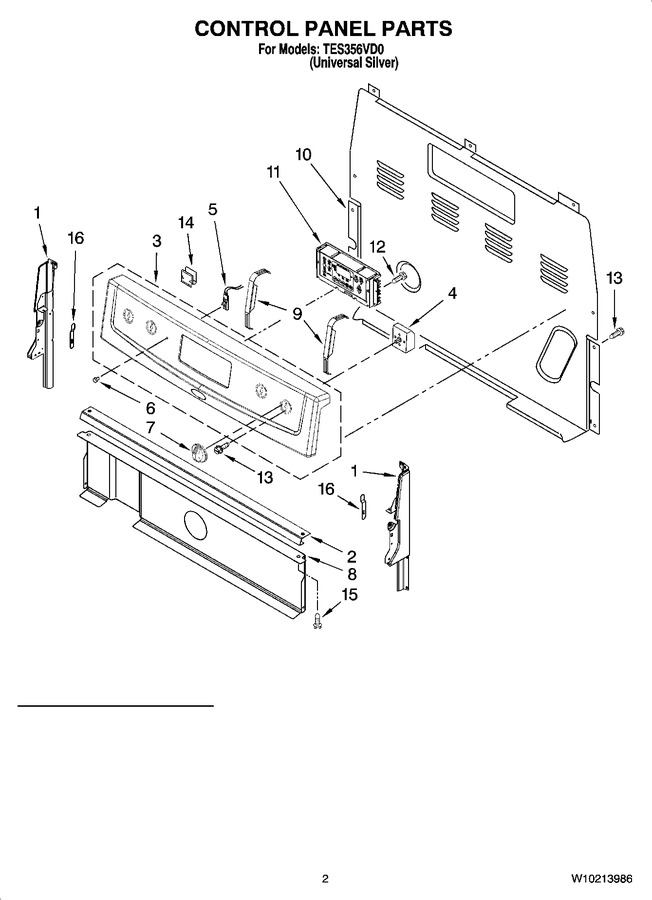

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (left Hand) (Replaces: W10184437) |
|
Immediately | $ 138.45 | ||||
| 1 | W11219665 | Endcap (right Hand) (Replaces: W10184438) |
|
Immediately | $ 40.65 | ||||
| 2 | W10525121 | Bracket, Console (Replaces: W10182322) |
|
$ 88.97 | |||||
| 3 | W10202188 | Panel, Control |
|
- | |||||
| 4 | 5500-287 | Switch, Infinite (lr & Rf (green)) (Replaces: 3148953) |
|
Immediately | $ 49.03 | ||||
| 4 | WP3148952 | Switch, Infinite (lf/rr - (yellow)) (Replaces: 3148952) |
|
Immediately | $ 62.56 | ||||
| 5 | WP8523265 | Light, Indicator (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | W10203525 | Knob, Infinite (4) |
|
- | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 9 | W11230932 | Brkt, Mntg Eoc (Replaces: W10138683) |
|
Immediately | $ 76.33 | ||||
| 10 | WP8272473 | Cover, Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | WPW10476691 | Control, Range (Replaces: W10173511) |
|
$ 335.61 | |||||
| 12 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 13 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 14 | WP8273564 | Clip - Cover (Replaces: 8273564) |
|
$ 11.39 | |||||
| 15 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 7.36 | ||||
| 16 | 3196200 | Clip, Spring (2) |
|
$ 9.41 |
