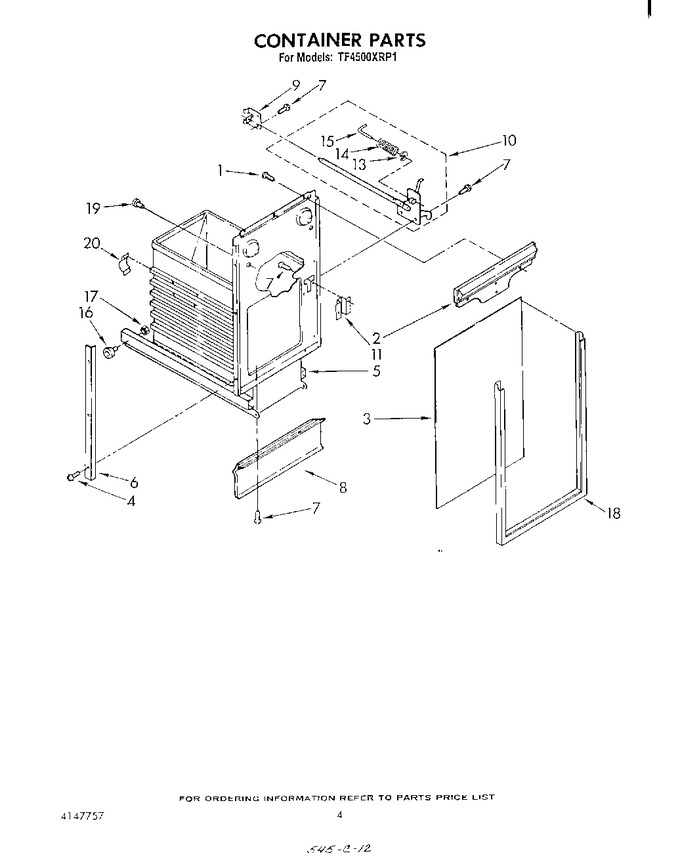

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489069		Screw, 8-18 X 1/2   (Replaces: 780230)			Immediately	$ 8.40
2	WP608732		Handle, Container   (Replaces: 608769)				$ 264.39
3	780334		Panel, Container Front (almond & Black)		Appelez-nous	-
4	776191		Screw, 6-20 X 3/8 Ab (4)		Appelez-nous	-
5	675296		Container Assembly		Appelez-nous	-
6	608051		Plate, Trim (2)				$ 26.10
7	WP489069		Screw, 8 X 1/2ab   (Replaces: 776076)			Immediately	$ 8.40
8	777329		Plate, Toe		Appelez-nous	-
9	WP776395		Guide, Rear Latch   (Replaces: 776395)				$ 98.10
10	675379		Latch Assembly   (Replaces: 775740)				$ 182.53
11	775665		Plate, Latch				$ 62.39
13	W11679168		``e`` Ring   (Replaces: 775735)		Appelez-nous	-
14	775736		Spring				$ 93.80
15	W11705836		Pin   (Replaces: 776654)		Appelez-nous	-
16	WP9871602		Bearing, Container Roller   (Replaces: 776261)				$ 13.87
17	WP776356		Locknut, 3/8-24 (2)   (Replaces: 776356)				$ 8.53
18	777345		Trim, Container (front)		Appelez-nous	-
19	775785		Bumper, Container (2)		Appelez-nous	-
20	4147747		Spring, Safety Switch		Appelez-nous	-
