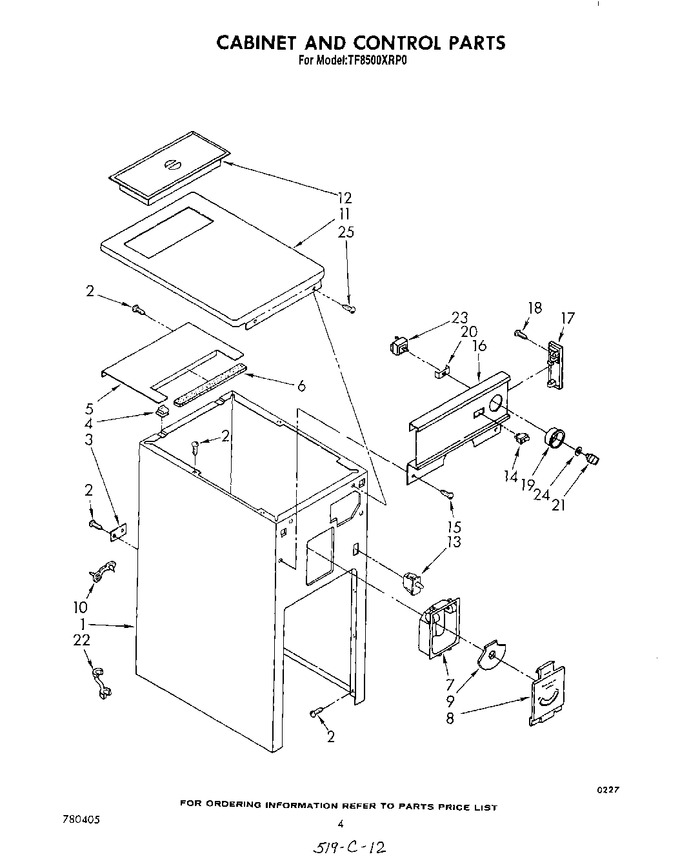

SELECT A DIAGRAM

01 - Motor And Drive , Parts Not Illustrated


02 - Frame


03 - Powerscrew And Ram


04 - Cabinet And Control


05 - Container


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	608843		Cabinet		Appelez-nous	-
1	WP489069		Crew, 8 X 1/2ab   (Replaces: 776076)			Immediately	$ 8.40
3	775676		Plate, Power Cord		Appelez-nous	-
4	776017		Clip, Toe Mount		Appelez-nous	-
5	780438		Plate, Bag Storage		Appelez-nous	-
6	776780		Barrier, Glass		Appelez-nous	-
7	777642		Compartment, Air Flow		Appelez-nous	-
8	608783		Cover, Air Flow		Appelez-nous	-
9	608782		Dail, Air Flow		Appelez-nous	-
10	W11705832		Clamp, Wire   (Replaces: 777035)		Appelez-nous	-
11	608720		Top, Cabinet		Appelez-nous	-
12	780081		Lid, Bag Storage		Appelez-nous	-
13	780421		Switch, Drawer Tilt		Appelez-nous	-
14	WP4314961		Switch, Rocker   (Replaces: 780398)				$ 93.95
15	776559		Screw, 6-20 X 3/8ab		Appelez-nous	-
16	780390		Escutcheon, Control		Appelez-nous	-
17	780180		End Cap, Escutcheon R.h.		Appelez-nous	-
17	780179		End Cap, Escutcheon (l.h.)		Appelez-nous	-
18	WP489069		Screw, 8-18 X 1/2 (4)   (Replaces: 780230)			Immediately	$ 8.40
19	780387		Bezel, Escutcheon		Appelez-nous	-
20	608839		Bracket, Switch		Appelez-nous	-
21	776594		Knob, Switch   (Replaces: 780392)				$ 30.27
22	W11820597		Bushing, Power Cord   (Replaces: 776119)		Appelez-nous	-
23	675382		Switch, Rotary   (Replaces: 608824)				$ 246.48
24	WP777383		Nut, Switch   (Replaces: 777383)				$ 12.83
25	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
25	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
25	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
25	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
25	261886		Coffee		Appelez-nous	-
25	261890		Golden Wheat		Appelez-nous	-
25	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
25	675167		Primer (tan)		Appelez-nous	-
25	978726		Stanford Brown		Appelez-nous	-
25	285365		Toast		Appelez-nous	-
25	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
25	776493		Screw, 8-18 X 1/2		Appelez-nous	-
25	675351		Grease 4 Oz. (use On Power Screw & Ram Pressure Pads)		Appelez-nous	-
25	778605		Harness, Wiring		Appelez-nous	-
25	777635		Deodorizer, Solid Stick-ups (2-pack)		Appelez-nous	-
25	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
25	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
25	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
25	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
25	DD81-03505A		Paint, Touch-up 1/2 Oz. (stanford Brown)   (Replaces: 72106)				$ 121.47
25	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
25	261888		Avocado		Appelez-nous	-
25	285006		Paint, Spray 13 Oz. (black)				$ 59.89

    View Diagram in Separate Window       Print Part List
