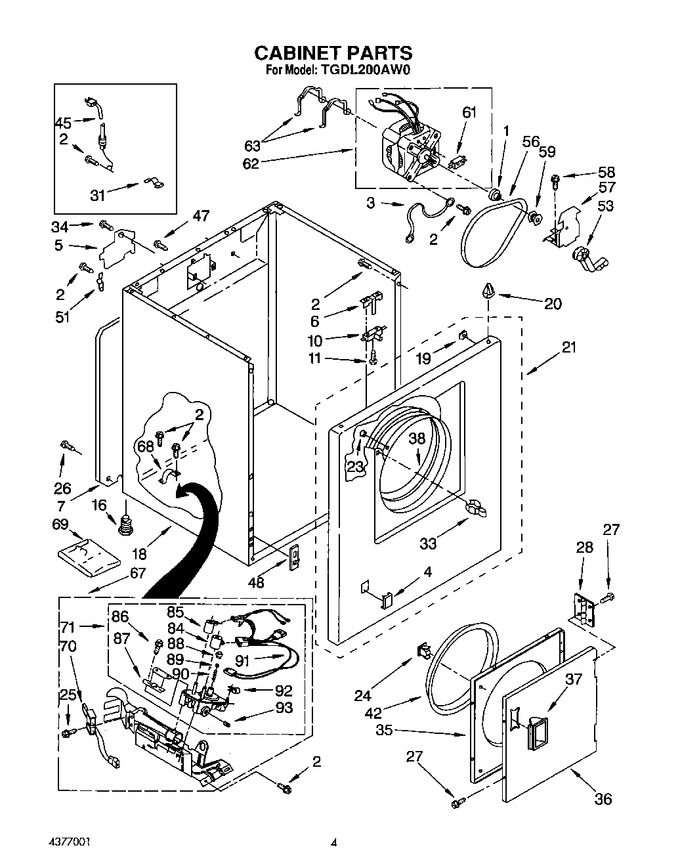

03 - Cabinet
04 - 694670 Burner Assembly
05 - Bulkhead
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 139.08 | ||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 3 | 690236 | Wire, Ground (motor) |
|
- | |||||
| 4 | 3394975 | Plug, Front Panel (white) |
|
$ 5.70 | |||||
| 4 | 3394976 | Plug, Front Panel (almond) |
|
- | |||||
| 5 | W11736322 | Cover, Block (Replaces: 690893) |
|
- | |||||
| 6 | WP691581 | Lever, Door Switch (Replaces: 691581) |
|
Immediately | $ 8.49 | ||||
| 7 | 347736 | Panel, Rear |
|
- | |||||
| 10 | W10820036 | Switch, Door (Replaces: 347207) |
|
Immediately | $ 30.50 | ||||
| 11 | WP98129 | Screw, 6-20 X 7/8 (Replaces: 98129) |
|
$ 8.18 | |||||
| 16 | 49621 | Foot, Dryer (4) (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 18 | 3394110 | Cabinet (almond) |
|
- | |||||
| 18 | 3394109 | Cabinet (white) |
|
- | |||||
| 19 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 20 | WP18776 | Lock, Front Top (2) (Replaces: 690363) |
|
Immediately | $ 13.31 | ||||
| 21 | 3394895 | Panel, Front (white) |
|
- | |||||
| 21 | 3394896 | Panel, Front (almond) |
|
- | |||||
| 23 | 279220 | Clip, Felt Pad (2) (Replaces: 685203) |
|
$ 23.55 | |||||
| 24 | WP3389441 | Catch, Door (Replaces: 3389441) |
|
$ 6.20 | |||||
| 25 | WPW10366705 | Lock Screw & Washer (8-32 X 5/8) (Replaces: 3393909) |
|
$ 7.88 | |||||
| 26 | WP489069 | Screw, Hex Washer Head (7) (Replaces: 693994) |
|
Immediately | $ 8.40 | ||||
| 27 | WP694091 | Screw (Replaces: 694091) |
|
$ 7.55 | |||||
| 28 | WP348023 | Hinge & Pin Assembly (Replaces: 348023) |
|
$ 9.32 | |||||
| 31 | WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 11.64 | |||||
| 33 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 34 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 35 | 280077 | Door, Rear (Replaces: 695656) |
|
$ 207.46 | |||||
| 36 | WP348205 | Door, Front (white) (Replaces: 348205) |
|
Immediately | $ 154.76 | ||||
| 36 | 689314 | Door, Front (almond) |
|
- | |||||
| 37 | 689308 | Handle, Door (almond) |
|
$ 5.70 | |||||
| 37 | WP686711 | Handle, Door (white) (Replaces: 686711) |
|
Immediately | $ 8.35 | ||||
| 38 | 279264 | Seal & Bearing Assembly (Replaces: 349462) |
|
Immediately | $ 74.52 | ||||
| 42 | W11613302 | Seal, Door (Replaces: 3390734) |
|
$ 56.31 | |||||
| 45 | W11222083 | Cord, Power (Replaces: 344020) |
|
$ 126.62 | |||||
| 47 | W10850756 | Screw, External Ground (10-32 X 1/2) (Replaces: 697776) |
|
$ 8.20 | |||||
| 48 | W10854425 | Clip, Panel (2) (Replaces: 3394083) |
|
Immediately | $ 16.34 | ||||
| 51 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 8.21 | |||||
| 53 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 56 | 341241 | Belt, Drive (Replaces: 660996) |
|
Immediately | $ 18.15 | ||||
| 57 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 127.65 | ||||
| 58 | 3400500 | Bolt, 5/16-18 X 3/4 (Replaces: 172455) |
|
Immediately | $ 14.04 | ||||
| 59 | WP8066184 | Pulley 60 Hz (Replaces: 3389627) |
|
Immediately | $ 51.02 | ||||
| 61 | 279827 | Switch (use W/3391888 Motor) (Replaces: 3388235) |
|
Immediately | $ 191.95 | ||||
| 62 | 279827 | Motor Assembly 60 Hz. (Replaces: 3391888) |
|
Immediately | $ 191.95 | ||||
| 63 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 63 | WP660658 | (alt.) (Replaces: 685441) |
|
$ 8.22 | |||||
| 63 | WP660658 | (alt.) (Replaces: 343481) |
|
$ 8.22 | |||||
| 67 | 694670 | Burner Assembly, 60 Hz. (refer To Pages For Further Breakdown) |
|
- | |||||
| 68 | 341029 | Clamp, Pipe |
|
- | |||||
| 69 | 49572A | Kit, Conversion Type 1, 2 & 3 To Type 4 (lpg) (Replaces: 694572) |
|
Immediately | $ 36.19 | ||||
| 69 | 279243 | Kit, Conversion Type 1 To Type 3 (mfg. Gas) |
|
- | |||||
| 70 | 279311 | (alt.) (Replaces: 686590) |
|
Immediately | $ 78.90 | ||||
| 70 | 279311 | Ignitor (use W/694670 Burner) (Replaces: 660991) |
|
Immediately | $ 78.90 | ||||
| 71 | 279923 | Valve, Gas 60 Hz. (complete) (Replaces: 694054) |
|
Immediately | $ 286.03 | ||||
| 84 | 279834 | Coil, 60 Hz. (split) (3 Terminal) (pilot Position) (Replaces: 694539) |
|
Immediately | $ 32.85 | ||||
| 85 | 279834 | Coil, 60 Hz. (2 Terminal) (main) (Replaces: 694540) |
|
Immediately | $ 32.85 | ||||
| 86 | 694421 | Screw, Bracket Mounting (8-32 X 1/2) (2) |
|
- | |||||
| 87 | 694538 | Bracket, Coil |
|
$ 72.05 | |||||
| 88 | WP694424 | Leak Limiter (Replaces: 694424) |
|
$ 36.30 | |||||
| 89 | WP694423 | Screw, Regulator Adjustment (Replaces: 694423) |
|
$ 7.30 | |||||
| 90 | WP694422 | Spring, Regulator (Replaces: 694422) |
|
$ 25.48 | |||||
| 91 | WP3401850 | Harness, Wiring (complete) (Replaces: 694426) |
|
$ 255.13 | |||||
| 92 | 694510 | Clip, Harness |
|
- | |||||
| 93 | W10295523 | Plug, Pipe (Replaces: 239822) |
|
- |
