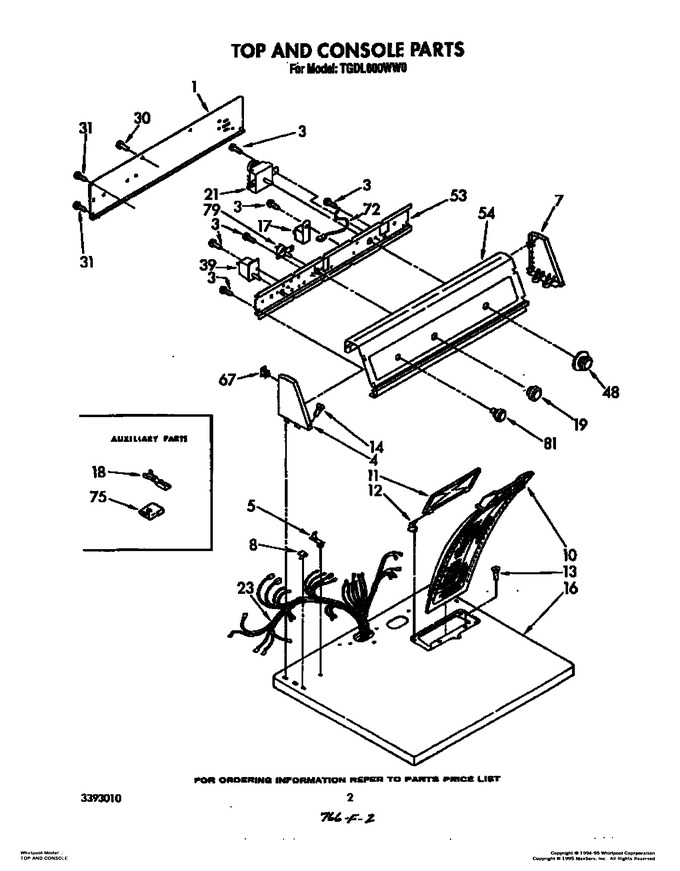

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	386367		Panel, Rear Console		Appelez-nous	-
3	WP3390631		Screw, 10-16 X 5/16   (Replaces: 339554)				$ 8.25
4	3352244		Cap, End (l.h.)		Appelez-nous	-
5	358472		Stop, Push-in (2)		Appelez-nous	-
7	3352239		Cap, End (r.h.)		Appelez-nous	-
8	358473		Nut, Push-in (2)				$ 5.84
10	339392V		Screen, Lint   (Replaces: 337448)			Immediately	$ 41.91
11	688150		Cover, Lint Screen (white)		Appelez-nous	-
11	689310		Cover, Lint Screen (almond)		Appelez-nous	-
12	WPW10044480		Hinge, L.h.   (Replaces: 339230)				$ 8.11
12	WPW10044470		Hinge, R.h.   (Replaces: 339229)				$ 8.11
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	WP388326		Screw, End Cap To Top   (Replaces: 64211)				$ 9.29
16	3393386		Top (almond)		Appelez-nous	-
16	3393385		Top (white)		Appelez-nous	-
17	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
18	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
19	3393266		Control Knob, Temperature		Appelez-nous	-
21	3387479		Timer Assembly, 60 Hz.		Appelez-nous	-
23	3393705		Harness, Wiring		Appelez-nous	-
30	WP693995		Screw (2)   (Replaces: 693995)			Immediately	$ 7.55
31	WP489069		Screw (4)   (Replaces: 693994)			Immediately	$ 8.40
39	660936		Switch, Push-to-start		Appelez-nous	-
39	692021		Switch, Push-to-start (alt.)		Appelez-nous	-
39	346364		Switch, Push-to-start (alt.)		Appelez-nous	-
48	3391825		Timer Knob Assembly		Appelez-nous	-
53	3390619		Bracket, Control		Appelez-nous	-
54	3391779		Panel, Control		Appelez-nous	-
67	689559		Clip, Push-on (4)		Appelez-nous	-
72	690853		Wire, Ground		Appelez-nous	-
75	691707		Receptacle, Latching (3-way) (uses Terminal 94614)		Appelez-nous	-
79	694720		Switch, Temperature		Appelez-nous	-
81	3393105		Knob, Push-to-start		Appelez-nous	-
	LIT3391362		Use & Care Guide		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
	285365		Toast		Appelez-nous	-
	261890		Golden Harvest		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
	LIT3393010		List, Service Parts		Appelez-nous	-
	LIT3393135		Instructions, Installation		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	285368		Platinum (uncut)		Appelez-nous	-
	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	261891		Golden Harvest (uncut)		Appelez-nous	-
	350941		Leveler (thinner)		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
