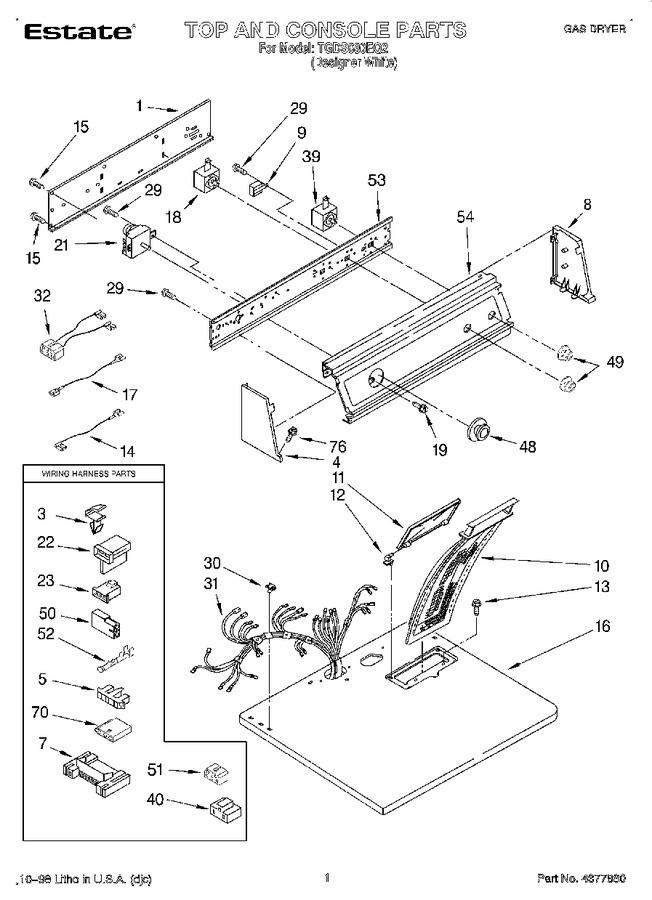

01 - Top And Console, Lit/optional


02 - Cabinet


03 - Bulkhead


04 - 3402844 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3397545		Panel, Rear Console		Appelez-nous	-
3	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
4	3358015		Cap, End (l.h.)		Appelez-nous	-
5	3397269		Connector, Timer				$ 25.55
7	3395683		Housing, Connector (motor)			Immediately	$ 54.45
8	3357997		Cap, End (r.h.)		Appelez-nous	-
9	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
10	WP349639		Handle & Lint Screen Assembly   (Replaces: 349639)			Immediately	$ 37.21
11	688150		Cover, Lint Screen		Appelez-nous	-
12	WPW10044480		Hinge, L.h.   (Replaces: 339230)				$ 8.11
12	WPW10044470		Hinge, R.h.   (Replaces: 339229)				$ 8.11
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3401694		Wire, Jumper (tan)		Appelez-nous	-
15	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
16	3396022		Top		Appelez-nous	-
17	3401684		Wire, Jumper (black)				$ 34.57
18	3399638		Switch, Temperature				$ 136.24
19	3400859		Screw, Grounding (8-18 X 7/32)				$ 13.88
21	WP3976574		Timer Assembly, 60 Hz.   (Replaces: 3976574)			Immediately	$ 437.84
22	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
23	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
31	3394301		Harness, Wiring		Appelez-nous	-
32	8283286		Wire-jumper Assembly (temperature)   (Replaces: 3396028)		Appelez-nous	-
39	3398096		Relay, Push To Start				$ 50.70
40	3401144		Connector, (pts Relay)				$ 12.81
48	3977119		Timer Knob Assembly		Appelez-nous	-
49	3398390		Knob, Control		Appelez-nous	-
50	717252		Receptacle, 2 Way		Appelez-nous	-
51	3347243		Connector 6-circuit		Appelez-nous	-
52	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
53	8054298		Bracket, Control		Appelez-nous	-
54	3405709		Panel, Control		Appelez-nous	-
70	3936144		Connector				$ 21.22
76	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
	LIT3405338		Instructions, Installation		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
	LIT3406692		Label, Wiring Diagram		Appelez-nous	-
	LIT3406074		Guide, Use & Care		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
