SELECT A DIAGRAM

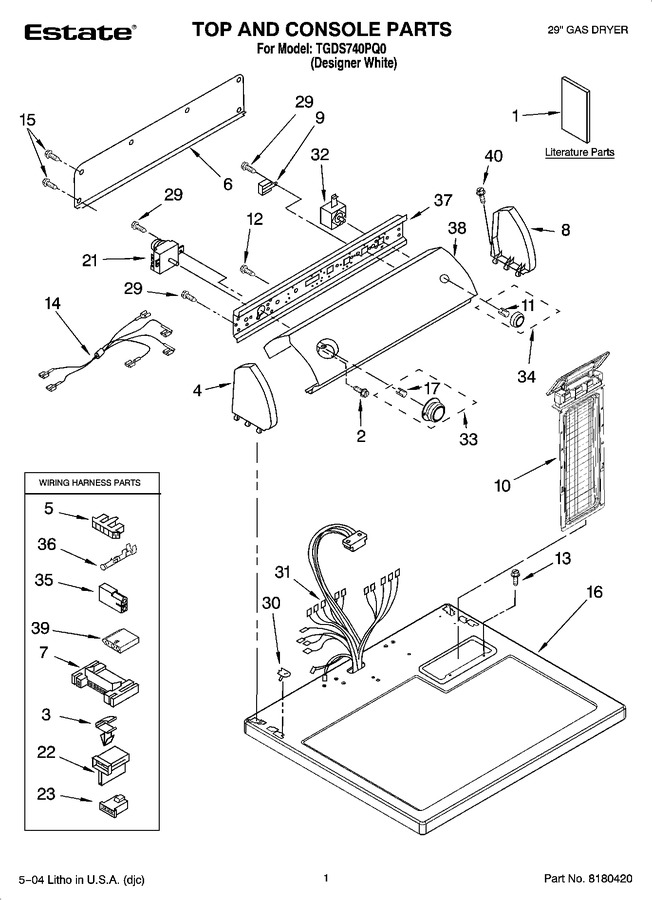

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8528187		Wiring Diagram		Appelez-nous	-
1	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	8533781		Sheet, Cycle Feature		Appelez-nous	-
1	8562589		Installation Instructions		Appelez-nous	-
1	8533783		Use & Care Guide		Appelez-nous	-
2	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
3	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
4	279960		Cap, End (l.h.)   (Replaces: 8274437)				$ 87.57
5	3397269		Connector, Timer				$ 25.55
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
7	3395683		Housing, Connector (motor)			Immediately	$ 54.45
8	279960		Cap, End (r.h.)   (Replaces: 8274434)				$ 87.57
9	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
10	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	8539888		Wire, Jumper (pts To Buzzer)		Appelez-nous	-
15	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
16	8557930		Top		Appelez-nous	-
17	WP688805		Clip   (Replaces: 688805)			Immediately	$ 8.20
21	WP3976584		Timer Assembly (60 Hz.)   (Replaces: 3976584)				$ 380.18
22	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
23	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
31	8299876		Harness, Wiring		Appelez-nous	-
32	WP3404233		Switch, Push-to-start   (Replaces: 3404233)			Immediately	$ 115.10
33	8557456		Timer Knob Assembly		Appelez-nous	-
34	8557460		Knob, Control				$ 23.37
35	717252		Receptacle, 2 Way		Appelez-nous	-
36	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
37	8271418		Bracket, Control				$ 57.15
38	3977948		Panel, Control		Appelez-nous	-
39	3936144		Connector				$ 21.22
40	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
40	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
40	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)				$ 12.34
40	346764		Kit, Hold-down (gas Dryer Mobile Home Installation)		Appelez-nous	-
40	3404351		Dry Rack				$ 89.81
40	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
40	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
40	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
40	N/A		Accessory Parts		Appelez-nous	-
40	4392065		Kit, Dryer Repair   (Replaces: 279948)			Immediately	$ 53.85

    View Diagram in Separate Window       Print Part List
