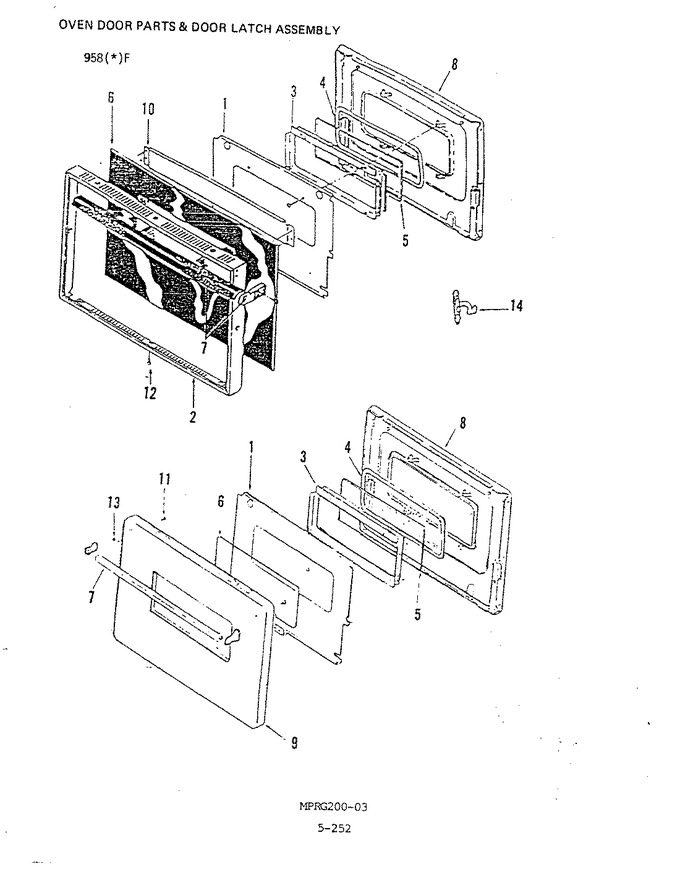

01 - Door & Latch Assy.
02 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7712E031 | Clip, Door Glass | 1 |
|
- | ||||
| 1 | 0153329 | Baffle | 1 |
|
- | ||||
| 2 | 7706E007 | Frame, Ovn Door | 1-14 |
|
- | ||||
| 2 | 7706P178-60 | Frame, Door | 15 |
|
- | ||||
| 3 | 3603J013 | Frame, Window | 1 |
|
- | ||||
| 4 | 1313263 | Gasket | 1 |
|
- | ||||
| 5 | 1327100 | Glass | 1 |
|
- | ||||
| 6 | 7902E064 | + Glass, Door | 1 |
|
- | ||||
| 7 | 7701E019 | Handle, Door | 1 |
|
- | ||||
| 7 | 7728E012 | Insert, Handle | 1 |
|
- | ||||
| 8 | 2422L076 | Lining, Oven Door | 1-7 |
|
- | ||||
| 8 | 2402W091-23 | Lining Assy, Ov Dr | 8 |
|
- | ||||
| 8 | 2402W091-16 | Lining Assy, Ov Dr | 1 |
|
- | ||||
| 10 | 3804F040 | Retainer, Glass | 1 |
|
- | ||||
| 11 | 7101E083 | Screw, Oven Door | 1 |
|
- | ||||
| 12 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 2 |
|
$ 13.94 | ||||
| 12 | 1726252 | Seal | 1 |
|
- | ||||
| 12 | 1986258 | Screw, Special | 1 |
|
- | ||||
| 13 | 7803E024 | Spring, Oven Door | 1 |
|
- | ||||
| 14 | 3804J038 | Support, Glass | 1 |
|
- | ||||
| 14 | Y0112241 | Stop, Door | 1 |
|
- |
