SELECT A DIAGRAM

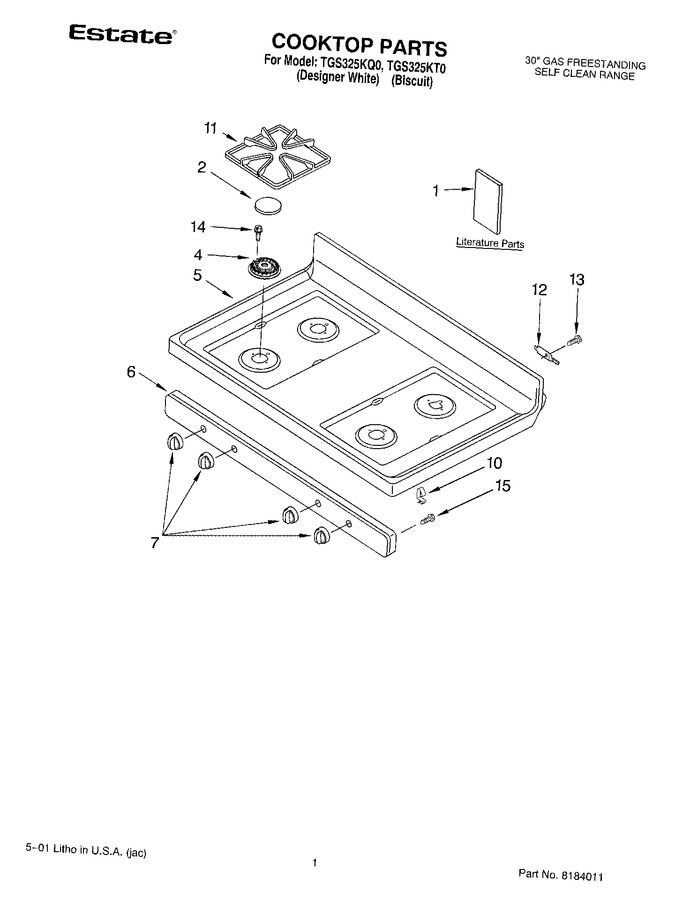

01 - Cooktop, Literature


02 - Control Panel


03 - Manifold


04 - Chassis


05 - Broiler


06 - Door, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8273166		Literatrure Parts (instructions, Installation)		Appelez-nous	-
1	LIT3195945		Literatrure Parts (template (instruct-install))		Appelez-nous	-
1	LIT8522718		Literatrure Parts (guide, Use & Care)		Appelez-nous	-
1	LIT8273173		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	WP3191898		Cap, Burner (small (1) (black))   (Replaces: 3191898)				$ 71.00
2	WP3191903		Cap, Burner (large (3) (grey))   (Replaces: 3191903)				$ 191.50
2	WP3191901		Cap, Burner (large (3) (black))   (Replaces: 3191901)				$ 128.91
2	3191899		Cap, Burner (small (1) (grey))				$ 31.21
4	8273216		Burner (rr)		Appelez-nous	-
4	WP4455980		Burner (lf, Lr, Rf)   (Replaces: 8273215)				$ 65.21
5	8195546		Cooktop (biscuit)   (Replaces: 8272743)		Appelez-nous	-
5	8272251		Cooktop (white)		Appelez-nous	-
6	WP8523854		Panel, Manifold (white)   (Replaces: 8273025)				$ 290.58
6	8273028		Panel, Manifold (biscuit)		Appelez-nous	-
7	WP8273106		Knob, Burner (4) (biscuit)   (Replaces: 8273106)				$ 19.55
7	WP8273104		Knob, Burner (4) (white)   (Replaces: 8273104)			Immediately	$ 17.99
10	3195813		Clip, Cooktop (2)		Appelez-nous	-
11	WPW10268483		Grate, Burner (4) (black)   (Replaces: 8053458)				$ 140.02
11	8053391		Grate, Burner (4) (grey)				$ 242.28
12	WP3195060		Hinge, Cooktop (2)   (Replaces: 3195060)			Immediately	$ 13.18
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
15	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95

    View Diagram in Separate Window       Print Part List
