SELECT A DIAGRAM

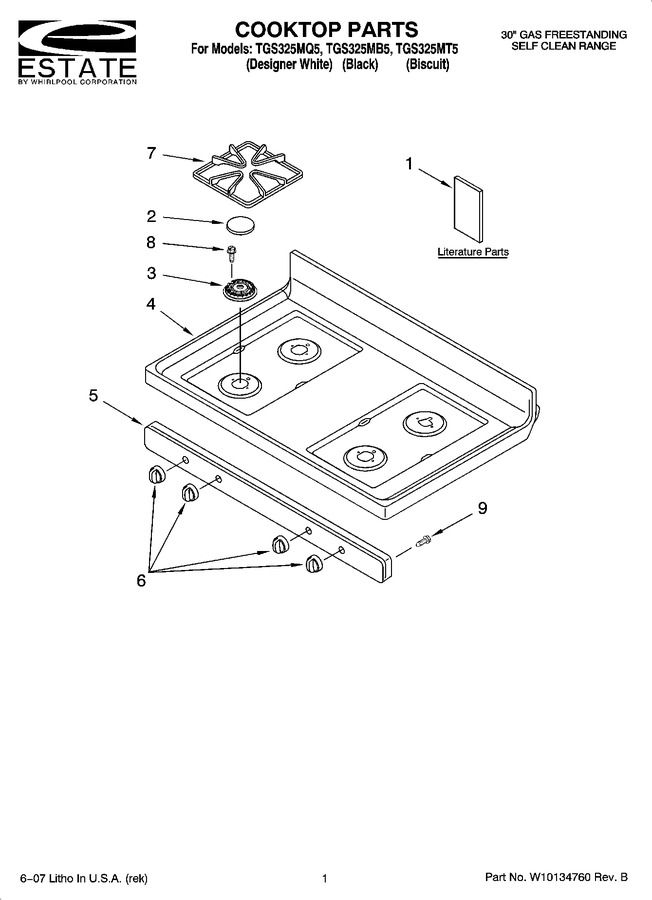

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts


06 - Broiler Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9762997		Installation Instructions		Appelez-nous	-
1	9757142		Anti-tip Template (english/spanish)		Appelez-nous	-
1	9757143		Anti-tip Template (english/french)		Appelez-nous	-
1	W10120514		Owners Manual		Appelez-nous	-
1	9755996		Tech Sheet		Appelez-nous	-
1	9762761		Safer Cooking Tips		Appelez-nous	-
2	WP3191903		Cap, Burner (white, Large (3))   (Replaces: 3191903)				$ 191.50
2	WP3191898		Cap, Burner (black, Small (1))   (Replaces: 3191898)				$ 71.00
2	WP8273343		Cap, Burner (biscuit, Small (1))   (Replaces: 8273343)				$ 90.90
2	WP3191901		Cap, Burner (black, Large (3))   (Replaces: 3191901)				$ 128.91
2	WP8273344		Cap, Burner (biscuit, Large (3))   (Replaces: 8273344)				$ 102.05
2	3191899		Cap, Burner (white, Small (1))				$ 31.21
3	WP4455980		Burner (lf - Lr - Rf)   (Replaces: 4455980)				$ 65.21
3	4455979		Burner (rr)				$ 28.52
4	8272251		Cooktop (white)		Appelez-nous	-
4	8272253		Cooktop (black)		Appelez-nous	-
4	8195546		Cooktop (biscuit)   (Replaces: 8272743)		Appelez-nous	-
5	WP8523854		Panel, Manifold (white)   (Replaces: 8523854)				$ 290.58
5	8523855		Panel, Manifold (black)				$ 176.18
5	8523856		Panel, Manifold (biscuit)		Appelez-nous	-
6	WP8273104		Knob, Burner (4) (white)   (Replaces: 8273104)			Immediately	$ 17.99
6	WP8273103		Knob, Burner (4) (black)   (Replaces: 8273103)			Immediately	$ 16.85
6	WP8273106		Knob, Burner (4) (biscuit)   (Replaces: 8273106)				$ 19.55
7	8053391		Grate, Burner (4) (white)				$ 242.28
7	WPW10268483		Grate, Burner (4) (black)   (Replaces: 8053458)				$ 140.02
7	8274187		Grate, Burner (4) (biscuit)		Appelez-nous	-
8	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
9	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95

    View Diagram in Separate Window       Print Part List
