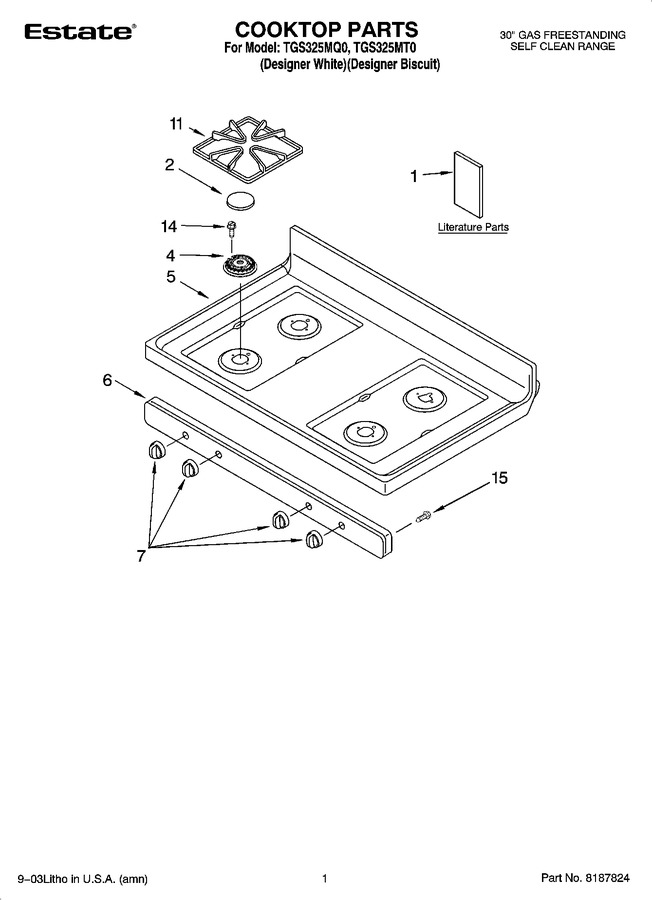

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Broiler Parts


06 - Door Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT9756904		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT8523048		Literature Parts (template (instruct-install))		Appelez-nous	-
1	LIT9756131		Guide, Use & Care		Appelez-nous	-
1	LIT9755996		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	3191899		Cap, Burner (small (1) (grey))				$ 31.21
2	WP3191898		Cap, Burner (small (1) (black))   (Replaces: 3191898)				$ 71.00
2	WP3191903		Cap, Burner (large (3) (grey))   (Replaces: 3191903)				$ 191.50
2	WP3191901		Cap, Burner (large (3) (black))   (Replaces: 3191901)				$ 128.91
4	WP4455980		Burner (lf - Lr - Rf)   (Replaces: 4455980)				$ 65.21
4	4455979		Burner (rr)				$ 28.52
5	8195546		Cooktop (biscuit)   (Replaces: 8272743)		Appelez-nous	-
5	8272251		Cooktop (white)		Appelez-nous	-
6	8523856		Panel, Manifold (biscuit)		Appelez-nous	-
6	WP8523854		Panel, Manifold (white)   (Replaces: 8523854)				$ 290.58
7	WP8273104		Knob, Burner (4) (white)   (Replaces: 8273104)			Immediately	$ 17.99
7	WP8273106		Knob, Burner (4) (biscuit)   (Replaces: 8273106)				$ 19.55
11	WPW10268483		Grate, Burner (4) (black)   (Replaces: 8053458)				$ 140.02
11	8053391		Grate, Burner (4) (grey)				$ 242.28
14	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
15	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95
