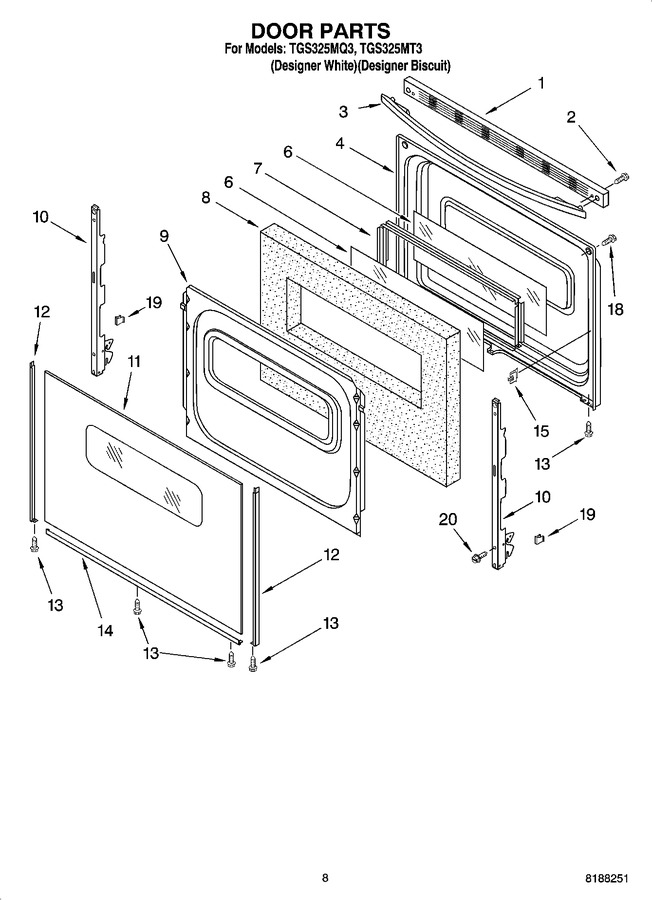

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Broiler Parts


06 - Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8272494		Trim, Top (biscuit)		Appelez-nous	-
1	8522433		Trim, Top (white)		Appelez-nous	-
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 8.69
3	8272495		Handle, Door (biscuit)		Appelez-nous	-
3	WPW10202216		Handle, Door (white)   (Replaces: 8522444)				$ 353.02
4	3186296		Liner, Door		Appelez-nous	-
6	WP9758164		Glass, Inner   (Replaces: 9758164)				$ 152.31
7	3186290		Frame, Glass		Appelez-nous	-
8	WPW10278991		Insulation, Door   (Replaces: 8272618)			Immediately	$ 96.54
9	9761499		Retainer, Insul.   (Replaces: 3186299)				$ 309.84
10	WP8053807		Hinge, Door (2)   (Replaces: 8053807)				$ 90.81
11	8273525		Glass, Outer Door (biscuit)		Appelez-nous	-
11	WP9762476		Glass, Outer Door (white)   (Replaces: 8053481)				$ 316.82
12	WP8523172		Trim, Door Side Left Hand (white)   (Replaces: 8523172)			Immediately	$ 69.93
12	WP8523167		Trim, Door Side Right Hand (biscuit)   (Replaces: 8523167)				$ 113.43
12	WP8523166		Trim, Door Side Right Hand (white)   (Replaces: 8523166)			Immediately	$ 84.23
12	WP8523173		Trim, Door Side Left Hand (biscuit)   (Replaces: 8523173)				$ 117.65
13	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.19
14	WP8523178		Trim, Bottom (biscuit)   (Replaces: 8523178)				$ 154.07
14	W11594186		Trim, Bottom (white)   (Replaces: 8523175)			Immediately	$ 58.45
15	3196025		Clip, Door Glass				$ 20.10
18	WP179051		Screw   (Replaces: 3196161)			Immediately	$ 7.96
19	3196925		Clip, Door Stop (2)				$ 9.06
20	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.19
	814381		Pin Kit-dr Removal   (Replaces: 3196897)				$ 8.59
	350956		Paint, Pressurized Spray (12 Oz.) (almond)				$ 51.44
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 57.04
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922)				$ 89.66
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	978883		Paint, Bulk (1 Qt.) (almond (uncut))		Appelez-nous	-
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	4396923		Pan - Broiler			Immediately	$ 57.82
	W11447673		Anti-tip Kit   (Replaces: 9757976)				$ 31.82
	9758205		Harness, Wire (main)		Appelez-nous	-
	8524207		Harness, Wire				$ 52.99
	8523599		Harness, Wire (cooktop-spark) Bake / Broil				$ 139.59
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	3196896		Clip-wire		Appelez-nous	-
	3400964		Clip, Wire   (Replaces: 3196520)				$ 84.76
	3196696		Clip, Wire		Appelez-nous	-
	16515		Clip, Harness   (Replaces: 313438)				$ 19.55
	W11244557		Screw   (Replaces: 3196173)				$ 13.61
	3195927		Tie,wire		Appelez-nous	-
	WP98997		Clip   (Replaces: 98997)				$ 11.09
	N/A		Miscellaneous		Appelez-nous	-
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 83.07
	261582		Grease		Appelez-nous	-
	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
