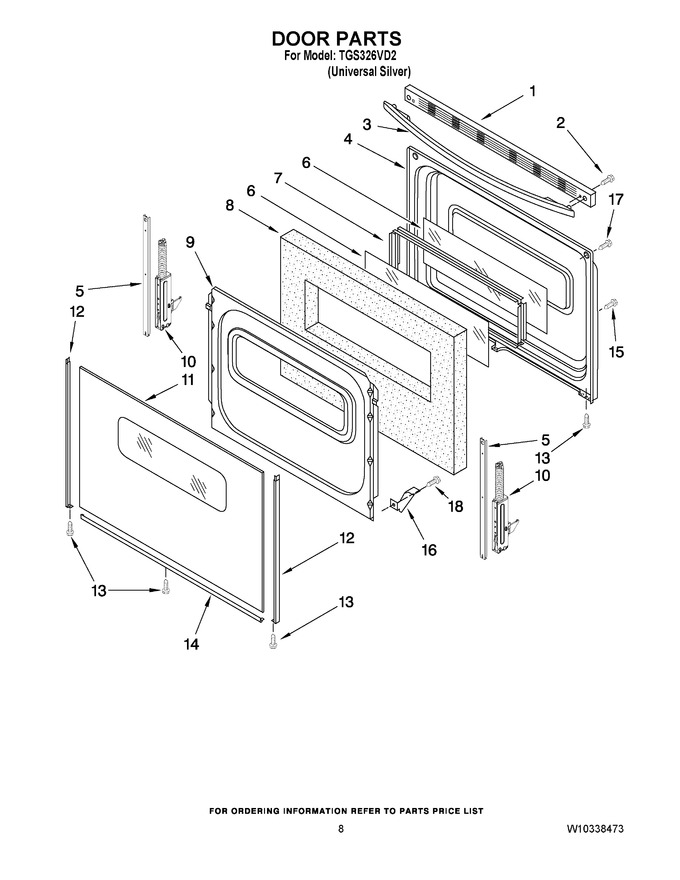

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Broiler Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10016380 | Trim, Top |
|
$ 80.76 | |||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 11.03 | ||||
| 3 | WPW10202217 | Handle, Door (Replaces: W10202217) |
|
$ 270.65 | |||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 5 | W11502236 | Strap, Door (2) (Replaces: W10113759) |
|
Immediately | $ 27.68 | ||||
| 6 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
$ 178.28 | |||||
| 7 | WPW10316950 | Frame, Glass (Replaces: 3186289) |
|
Immediately | $ 90.09 | ||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 101.37 | ||||
| 9 | W11539580 | Retainer, Insul. (Replaces: 9761357) |
|
$ 233.31 | |||||
| 10 | W10347464 | Hinge, Door (2) (Replaces: 9761496) |
|
Immediately | $ 133.98 | ||||
| 11 | W10144949 | Glass, Outer Door |
|
- | |||||
| 12 | W10761014 | Trim, Door Side (right Hand) (Replaces: 8523165) |
|
Immediately | $ 72.96 | ||||
| 12 | W10761018 | Trim, Door Side (left Hand) (Replaces: 8523171) |
|
Immediately | $ 53.77 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 14 | W10067550 | Trim, Bottom |
|
- | |||||
| 15 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 16 | W10137382 | Clip, Panel (2) |
|
Immediately | $ 48.42 | ||||
| 17 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 18 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 |
