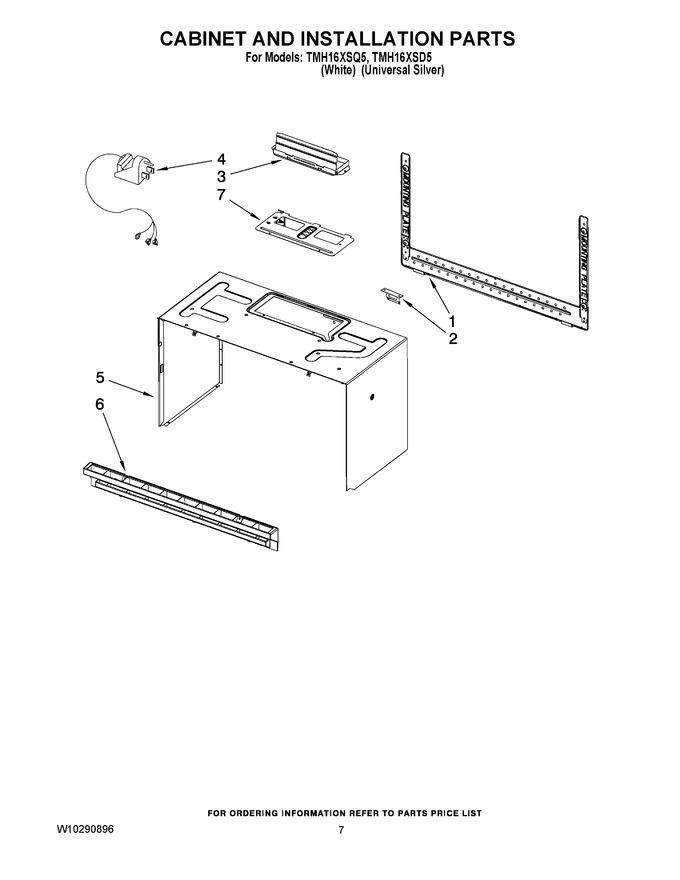

06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10269225 | Plate, Mounting (Replaces: W10269225) |
|
$ 80.73 | |||||
| 2 | 8206385 | Support, Wire Clip |
|
$ 37.20 | |||||
| 3 | W10843943 | Damper Assembly (Replaces: 8206442) |
|
Immediately | $ 73.04 | ||||
| 4 | W10247765 | Cord, Power |
|
- | |||||
| 5 | W10210836 | Case, Outer (white) |
|
- | |||||
| 5 | W10210839 | Case, Outer (universal Silver) |
|
- | |||||
| 6 | W10269233 | Grille, Vent (white) |
|
- | |||||
| 6 | W10281600 | Grille, Vent (universal Silver) |
|
- | |||||
| 7 | W10210832 | Plate, Damper |
|
$ 6.68 | |||||
| NI | W10821385 | Installation, Hardware (Replaces: 8206614) |
|
Immediately | $ 103.72 | ||||
| NI | 8205871 | Template, Upper |
|
$ 24.66 | |||||
| NI | W10138802 | Screw, Top Mountng |
|
$ 11.43 | |||||
| NI | W10212887 | Main Harness |
|
- | |||||
| NI | W10163438 | Ground Wire Assy |
|
- | |||||
| NI | 8206415 | H.v. Wire Assy |
|
$ 39.87 | |||||
| NI | W10107760 | Grnd Wire, Filter |
|
- | |||||
| NI | W10210892 | Hdlmp/tt Wire Assy |
|
- | |||||
| NI | W10539842 | Hv Trnsfmr Wr Assy (Replaces: W10163436) |
|
$ 16.70 | |||||
| NI | W10470168 | Harness Wire, Ntc (Replaces: W10163439) |
|
$ 42.74 |
