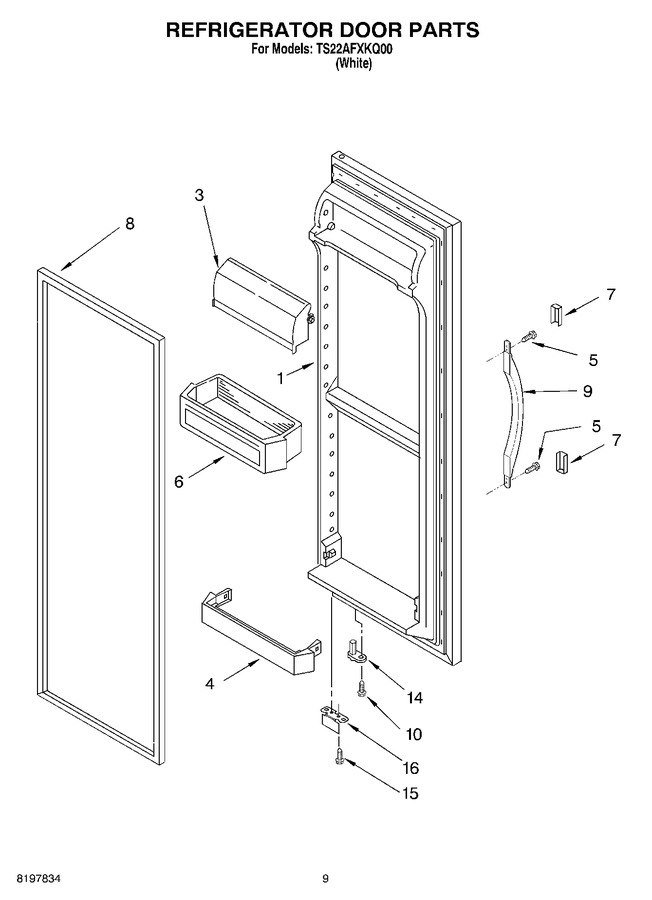

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2206826W		Refrigerator Door (includes Item No.8) (white)		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 89.42
4	WP2177962K		Trivet, Shelf   (Replaces: 2177962)				$ 85.14
5	WP489491		Screw   (Replaces: 489491)				$ 7.30
6	WP2187172		Shelf Bin (3)   (Replaces: 2187172)			Immediately	$ 45.09
7	WP2193353W		Trim, Handle (white)   (Replaces: 2193353W)				$ 8.52
8	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2196239)				$ 333.19
9	2186649W		Handle (white)				$ 70.49
10	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 7.20
15	WP489483		Screw   (Replaces: 489420)				$ 11.41
16	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 42.79
