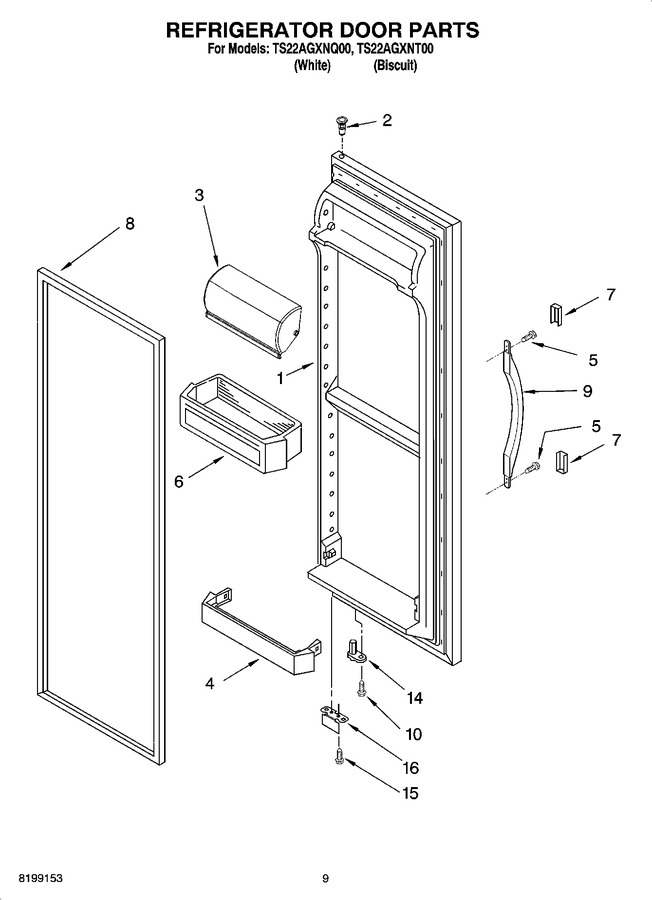

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | L2206826T | Refrigerator Door (includes Item 8) (biscuit) (Replaces: 2206826T) |
|
- | |||||
| 1 | 2206826W | Refrigerator Door (includes Item 8) (white) |
|
- | |||||
| 2 | WP2182181 | Thimble, Top (Replaces: 2182180) |
|
$ 8.15 | |||||
| 3 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 89.42 | ||||
| 4 | WP2156022 | Trivet, Shelf (Replaces: 2156022) |
|
Immediately | $ 82.55 | ||||
| 5 | WP489491 | Screw (Replaces: 489491) |
|
$ 7.30 | |||||
| 6 | WPW10321304 | Shelf Bin (3) (Replaces: 2179607) |
|
Immediately | $ 44.95 | ||||
| 7 | 2193353T | Trim, Handle (biscuit) |
|
- | |||||
| 7 | WP2193353W | Trim, Handle (white) (Replaces: 2193353W) |
|
$ 8.52 | |||||
| 8 | 2159073 | Door Gasket, Magnetic (mist Beige) (Replaces: 2221300) |
|
Immediately | $ 333.19 | ||||
| 9 | 2186649T | Handle (biscuit) |
|
- | |||||
| 9 | 2186649W | Handle (white) |
|
$ 70.49 | |||||
| 10 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 14 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 7.55 | ||||
| 15 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 16 | WP2206629B | Bracket, Door Stop (chrome) (Replaces: 2206629) |
|
$ 42.79 |
